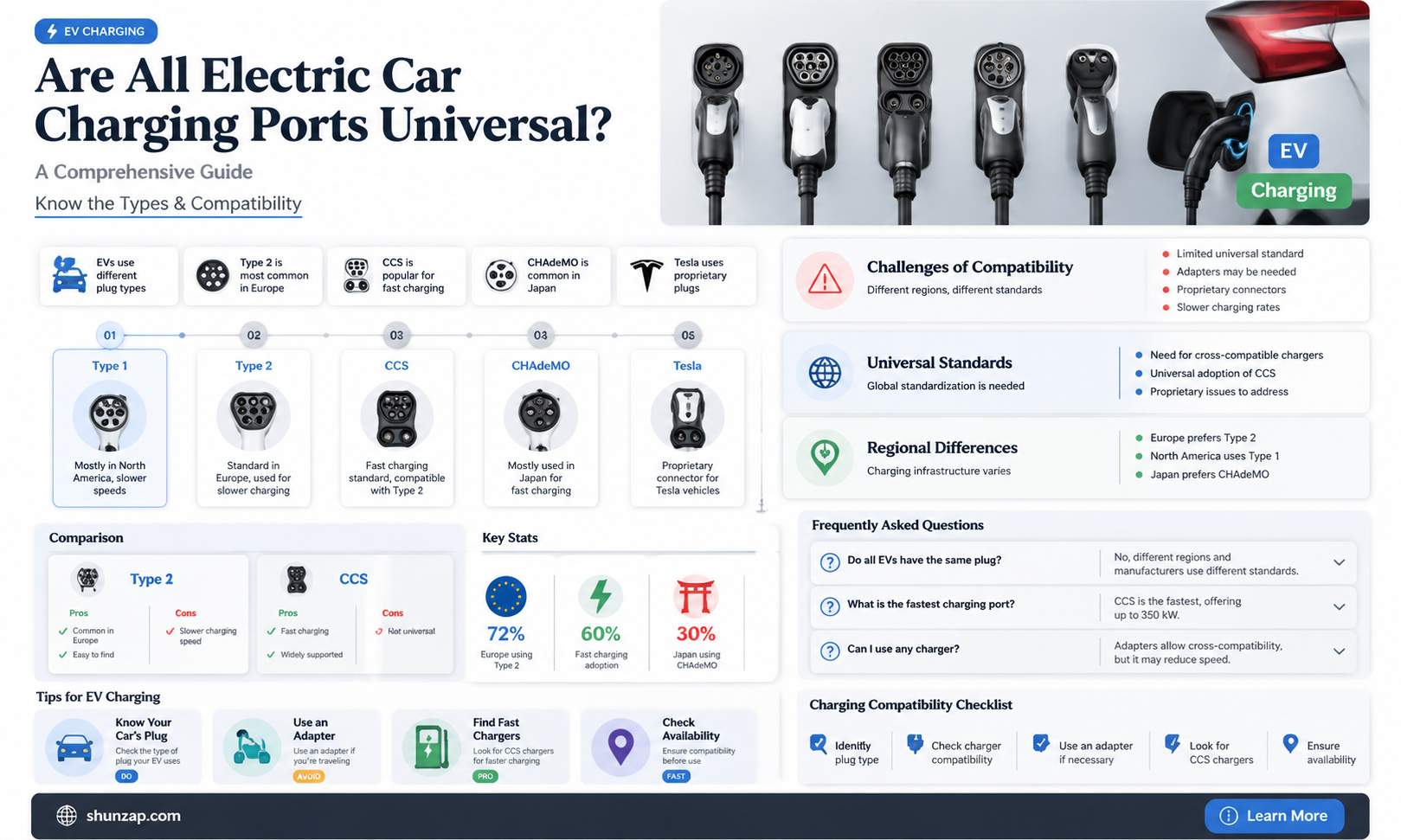

When considering the transition to an electric vehicle (EV), one common question that arises is whether all electric car charging ports are the same. The answer is no—electric car charging ports vary significantly depending on the vehicle’s make, model, and region. There are three primary types of charging connectors: Type 1 (SAE J1772) commonly used in North America for Level 2 charging, Type 2 (Mennekes) prevalent in Europe, and CCS (Combined Charging System), which is widely adopted for DC fast charging globally. Additionally, Tesla uses its proprietary connector, though adapters are available for compatibility with other networks. These differences highlight the importance of understanding your vehicle’s charging requirements and the availability of compatible charging stations in your area.
| Characteristics | Values |
|---|---|
| Standardization | Not all electric car charging ports are the same; they vary by region and type. |
| Type 1 Connector | Single-phase, up to 7.4 kW, primarily used in Japan and some U.S. models. |
| Type 2 Connector (Mennekes) | Single/three-phase, up to 43 kW, standard in Europe for AC charging. |
| CCS (Combined Charging System) | DC fast charging, up to 350 kW, widely used in Europe and North America. |
| CHAdeMO Connector | DC fast charging, up to 100 kW, commonly used in Japanese EVs like Nissan Leaf. |
| Tesla Supercharger | Proprietary DC fast charging, up to 250 kW, exclusive to Tesla vehicles. |
| GB/T Connector | DC fast charging, up to 250 kW, standard in China for EVs. |
| Power Levels | AC charging (3-22 kW), DC fast charging (50-350 kW). |
| Compatibility | Adapters available for cross-compatibility between some connectors. |
| Regional Variations | Europe (Type 2, CCS), North America (J1772, CCS), Asia (CHAdeMO, GB/T). |
| Future Trends | Increasing standardization toward CCS and higher power levels globally. |
Explore related products
What You'll Learn
- Types of Charging Connectors: Different standards like CCS, CHAdeMO, and Type 2 exist globally
- Charging Speeds: Ports vary by power output, affecting charging time significantly
- Compatibility Issues: Not all cars and stations are universally compatible
- Regional Differences: Charging ports differ across countries and continents
- Future Standards: Emerging technologies may unify or diversify charging ports further
Types of Charging Connectors: Different standards like CCS, CHAdeMO, and Type 2 exist globally
The world of electric vehicle (EV) charging is more complex than simply plugging in a cable. One of the key complexities lies in the variety of charging connectors available. Unlike the standardized fuel nozzles at gas stations, EVs utilize different connector types depending on the region, vehicle manufacturer, and charging speed. This diversity can be confusing for new EV owners, but understanding the main types is crucial for a seamless charging experience.
CCS (Combined Charging System) has emerged as the dominant standard for DC fast charging in Europe and North America. It's a versatile connector that combines AC and DC charging capabilities in a single port. This means CCS-equipped vehicles can utilize both slower AC chargers for home or public charging and rapid DC chargers for quicker top-ups on long journeys. The CCS connector features two additional power pins below the Type 2 AC connector, allowing for high-power DC charging.
CHAdeMO, developed by a Japanese consortium, was one of the first DC fast-charging standards and remains prevalent in Japan and among some early EV models globally. It's a dedicated DC charging connector, meaning it cannot be used for AC charging. CHAdeMO connectors are known for their reliability and widespread availability in Japan, but their bulkier design and lack of AC compatibility have led to their gradual decline in favor of CCS.
Type 2 connectors are the standard for AC charging in Europe and are increasingly adopted worldwide. They are used for slower charging at home, workplaces, and public charging stations. Type 2 connectors come in two variants: single-phase (up to 7.4 kW) and three-phase (up to 22 kW), with the latter offering faster charging speeds for compatible vehicles.
It's important to note that Tesla, a leading EV manufacturer, has its own proprietary charging connector and network, known as the Tesla Supercharger. While Tesla vehicles can adapt to other standards using adapters, the Supercharger network remains exclusive to Tesla owners, offering high-speed charging at strategically located stations. This exclusivity highlights the ongoing fragmentation in the EV charging landscape, although efforts are underway to promote interoperability and standardize connectors globally. Understanding these different connector types empowers EV owners to navigate the charging infrastructure effectively, ensuring they can charge their vehicles conveniently and efficiently wherever their journeys take them.
The Cost of Electric Vehicle Production: Industry Average
You may want to see also
Explore related products
![Raylix 16A Level 1&2 EV Charger, 110V-240V Electric Car Charger with 21ft Cable [Adjustable Current & Delay Charging] Portable EV Chargers for All SAE J1772, Nema 6-20 & Nema 5-15 Plug, Accessories](https://m.media-amazon.com/images/I/71jtqSY-S4L._AC_UL320_.jpg)
Charging Speeds: Ports vary by power output, affecting charging time significantly
The charging speed of an electric vehicle (EV) is heavily influenced by the power output of the charging port, which can vary widely across different types of chargers. Level 1 chargers, for example, typically operate at 120 volts and deliver around 2 to 5 kilowatts (kW) of power. These are the slowest charging option, often adding only 3 to 5 miles of range per hour of charging. While convenient for overnight home charging, they are impractical for quick top-ups or long trips due to their low power output.
Level 2 chargers are a significant step up, operating at 240 volts and providing 7 to 22 kW of power. These chargers are commonly found in homes, workplaces, and public charging stations. They can add 12 to 80 miles of range per hour, depending on the EV’s acceptance rate. For most daily driving needs, Level 2 chargers strike a balance between speed and accessibility, making them a popular choice for EV owners.
At the top end of the spectrum are DC fast chargers, which deliver power at rates ranging from 50 kW to 350 kW or more. These chargers bypass the onboard charger in the EV and directly supply DC power to the battery, enabling much faster charging times. A DC fast charger can add 60 to 100 miles of range in just 20 minutes, depending on the charger’s power output and the vehicle’s capabilities. However, not all EVs can accept the highest power levels, as this depends on the vehicle’s charging port and battery system.
The power output of the charging port directly correlates to charging time, but it’s also important to consider the EV’s maximum charging rate. For instance, if a vehicle can only accept up to 50 kW of power, connecting it to a 150 kW charger won’t provide any additional benefit. Conversely, using a low-power charger on a vehicle designed for faster charging will result in significantly longer wait times.
In summary, charging speeds are not uniform across all electric car charging ports due to variations in power output. Understanding the capabilities of both the charger and the vehicle is essential for optimizing charging times. Whether it’s a slow Level 1 charger, a versatile Level 2 charger, or a rapid DC fast charger, the power output plays a critical role in determining how quickly an EV can be charged, directly impacting the convenience and practicality of electric vehicle ownership.
Electric Vehicles: Worthy Investment or Costly Mistake?
You may want to see also
Explore related products
Compatibility Issues: Not all cars and stations are universally compatible
One of the most significant challenges in the electric vehicle (EV) ecosystem is the lack of universal compatibility between charging ports and stations. Unlike traditional gasoline vehicles, which use a standardized fuel nozzle, electric cars rely on various charging connectors and protocols. The most common types include CCS (Combined Charging System), CHAdeMO, and Type 2 (Mennekes) in Europe, while Tesla uses its proprietary connector. This diversity means that not all EVs can charge at every station, creating frustration for drivers and hindering widespread adoption. For instance, a Tesla owner may need an adapter to use a CHAdeMO charger, and even then, charging speeds might be limited.
Charging standards vary not only by region but also by vehicle manufacturer, further complicating compatibility. In North America, CCS is becoming the dominant standard, while in Japan, CHAdeMO is more prevalent. European EVs often use Type 2 connectors for AC charging and CCS for DC fast charging. This regional fragmentation forces EV owners to research charging networks before embarking on long trips, as a station that works for one car may not work for another. Additionally, older EV models may not support newer charging standards, leaving them at a disadvantage as infrastructure evolves.
Another layer of incompatibility arises from differences in charging speeds and power levels. Not all vehicles can accept the maximum power output of a fast-charging station, even if the connector is physically compatible. For example, a station capable of delivering 350 kW may only charge a car at 50 kW if the vehicle’s onboard charger is not designed to handle higher speeds. This mismatch can lead to longer charging times and inefficient use of resources. Manufacturers are gradually addressing this issue by upgrading charging capabilities in newer models, but older vehicles remain limited.
Adapters and converters can sometimes bridge the gap between incompatible charging ports, but they are not a perfect solution. While adapters allow, say, a Tesla to use a CHAdeMO charger, they often restrict charging speeds or require additional setup time. Moreover, not all stations support adapters, and carrying them adds inconvenience for drivers. The reliance on adapters also highlights the need for a more unified charging standard, which organizations like the International Electrotechnical Commission (IEC) are working toward but have yet to fully achieve.
For EV owners, understanding compatibility issues is crucial for a seamless charging experience. Apps like PlugShare and ChargePoint provide information on station locations and connector types, helping drivers plan ahead. However, the onus should not solely be on consumers; governments and industry stakeholders must collaborate to standardize charging infrastructure. Initiatives like the adoption of CCS as the European and North American standard are steps in the right direction, but global harmonization remains a work in progress. Until then, compatibility issues will continue to be a barrier to the universal acceptance of electric vehicles.
Electric Vehicles: Solar Panels' Absence Explained
You may want to see also
Explore related products
Regional Differences: Charging ports differ across countries and continents
The landscape of electric vehicle (EV) charging ports is far from uniform, with significant regional differences shaping the infrastructure across countries and continents. In North America, the SAE J1772 connector is the standard for Level 1 and Level 2 charging, while CCS (Combined Charging System) is widely adopted for DC fast charging. This standardization simplifies compatibility for EV owners within the region. However, in Europe, the Type 2 connector dominates for AC charging, and CCS is also prevalent for DC fast charging, though some older vehicles still use the CHAdeMO standard, primarily found in Japanese EVs like the Nissan Leaf.
In Japan and South Korea, the CHAdeMO standard remains influential, particularly for DC fast charging, despite the global shift toward CCS. This regional preference reflects historical adoption patterns and the strong presence of domestic automakers like Nissan and Mitsubishi. Meanwhile, China, the world's largest EV market, has its own unique standards. The GB/T connector is the norm for both AC and DC charging, with specifications that differ from global standards in terms of voltage, current, and communication protocols. This has created a distinct ecosystem that requires adapters or specialized vehicles for compatibility outside China.
Regional regulations and market dynamics play a pivotal role in these differences. For instance, the European Union has mandated the adoption of CCS for new EV models, accelerating the phase-out of CHAdeMO. In contrast, China's GB/T standard is heavily promoted by the government to support domestic manufacturers and reduce reliance on foreign technology. These policies not only influence charging infrastructure but also impact the design and manufacturing of EVs sold in these regions.
Traveling across borders with an EV highlights these disparities. For example, a European EV with a Type 2 connector may require an adapter to charge in North America, and a Chinese EV with a GB/T port would face similar challenges in Europe or the U.S. While adapters and multi-standard chargers are available, they are not always convenient or widely accessible, creating barriers for cross-border EV usage.
Looking ahead, efforts to harmonize charging standards are underway, driven by organizations like the International Electrotechnical Commission (IEC). However, the entrenched nature of regional standards and the economic interests of stakeholders suggest that complete uniformity is unlikely in the near future. For EV owners and manufacturers, understanding these regional differences remains essential for seamless charging experiences and market success.
Wyoming's Electric Vehicle Ban: A Step Backwards?
You may want to see also
Explore related products
Future Standards: Emerging technologies may unify or diversify charging ports further
The landscape of electric vehicle (EV) charging ports is poised for significant evolution as emerging technologies push the boundaries of standardization and innovation. One of the most promising developments is the potential unification of charging ports through global standards. Currently, the industry is fragmented, with Type 1, Type 2, CCS, CHAdeMO, and Tesla’s proprietary connector dominating different regions. However, efforts by organizations like the International Electrotechnical Commission (IEC) and the Society of Automotive Engineers (SAE) aim to streamline these standards. For instance, the Combined Charging System (CCS) is gaining traction as a universal standard, particularly in Europe and North America, due to its ability to support both AC and DC charging. If widely adopted, CCS could reduce confusion and infrastructure costs, making EV ownership more accessible globally.
On the other hand, emerging technologies may also drive diversification in charging ports, particularly as EVs evolve to meet new demands. Wireless charging, for example, eliminates the need for physical ports altogether, relying instead on inductive or resonant charging pads. While this technology is still in its infancy, its integration into EVs could create a parallel ecosystem of charging solutions. Similarly, advancements in solid-state batteries and ultra-fast charging may require new port designs to handle higher power levels and unique thermal management needs. This could lead to specialized connectors tailored for specific battery chemistries or charging speeds, further fragmenting the market.
Another factor influencing future standards is the rise of bidirectional charging, which allows EVs to not only draw power from the grid but also feed it back. This technology, often referred to as vehicle-to-grid (V2G), may necessitate additional hardware or software modifications to existing ports. Standardizing these features across different EV models and charging networks will be critical to realizing the full potential of V2G. However, the complexity of integrating such systems could temporarily increase diversity in charging port designs before a unified approach emerges.
Government policies and regional preferences will also play a pivotal role in shaping future standards. For instance, the European Union’s push for a single charging standard contrasts with China’s focus on promoting its own GB/T connector. As countries invest in EV infrastructure, their regulatory decisions will influence which technologies gain dominance. Collaboration between governments, automakers, and charging network providers will be essential to avoid further fragmentation and ensure interoperability across borders.
Finally, consumer demand and technological interoperability will drive the need for unified standards. As EVs become more mainstream, drivers will expect seamless charging experiences regardless of their vehicle make or location. Technologies like Plug & Charge, which automates the charging and payment process, rely on standardized communication protocols between vehicles and charging stations. Achieving this level of integration will require industry-wide consensus on port designs and software frameworks. While diversification may occur in the short term due to rapid innovation, the long-term trend is likely to favor unification as the benefits of interoperability outweigh the costs of maintaining multiple standards.
Electric Vehicles: Powering the Future of Transportation
You may want to see also
Frequently asked questions
No, electric car charging ports are not all the same. There are different types of connectors and standards depending on the region and vehicle manufacturer.
The most common types include Type 1 (SAE J1772), Type 2 (Mennekes), CCS (Combined Charging System), and CHAdeMO, with variations depending on the region and vehicle model.
It depends on your car’s charging port type. Most public charging stations offer multiple connector options, but it’s important to check compatibility with your vehicle’s charging port before use.
