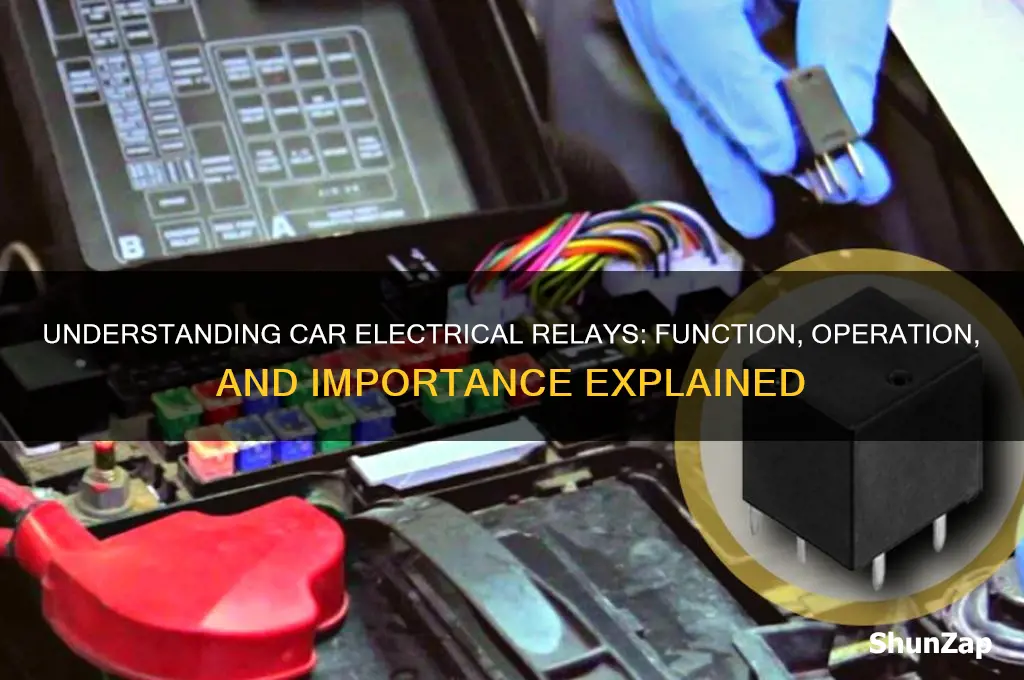

A car electrical relay is a crucial component in a vehicle's electrical system, acting as a switch that allows a low-power circuit to control a high-power circuit. Essentially, it works by using a small electromagnetic coil to open or close a set of contacts, enabling the flow of electricity to devices like headlights, fuel pumps, or fans. When the coil is energized by a low-voltage signal from the car's control module, it generates a magnetic field that pulls a lever, closing the high-power contacts and completing the circuit. This mechanism not only protects the control module from high currents but also ensures efficient and reliable operation of electrical components, making it an indispensable part of modern automotive systems.
| Characteristics | Values |
|---|---|
| Function | Acts as an electromagnetic switch to control high-power circuits with a low-power signal. |
| Components | Coil, armature, contacts (normally open, normally closed, common), and a spring. |
| Operating Principle | When current flows through the coil, it generates a magnetic field that pulls the armature, closing or opening the contacts. |
| Power Handling | Typically handles high currents (e.g., 30-40 amps) in the load circuit, while the control circuit uses low current (e.g., 0.1-0.5 amps). |
| Types | Electromechanical relay, solid-state relay (SSR), and hybrid relays. |
| Voltage Rating | Commonly 12V or 24V for automotive applications. |
| Contact Configuration | SPST (Single Pole Single Throw), SPDT (Single Pole Double Throw), etc. |
| Switching Speed | Electromechanical relays switch in milliseconds; SSRs switch in microseconds. |
| Durability | Designed for frequent switching cycles (e.g., 100,000+ cycles). |
| Protection Features | May include diode or varistor to protect against voltage spikes. |
| Applications in Cars | Headlights, fuel pumps, cooling fans, and other high-current systems. |
| Size | Compact, typically 1-2 inches in length, depending on current rating. |
| Material | Coil: Copper wire; Contacts: Silver or silver alloy for conductivity. |
| Failure Modes | Coil burnout, contact welding, or mechanical wear. |
| Diagnosis | Tested using a multimeter to check continuity and resistance. |
Explore related products
What You'll Learn
- Relay Basics: Electromagnetic switch controls high-power circuits with low-power signals, enabling safe operation
- Components Overview: Coil, armature, contacts, and terminals work together to manage electrical flow
- Operating Principle: Current through the coil creates a magnetic field, pulling the armature to switch contacts
- Types of Relays: SPST, SPDT, and DPDT relays offer different contact configurations for varied applications
- Common Uses: Relays control lights, fuel pumps, and fans, protecting the main circuit from overload
Relay Basics: Electromagnetic switch controls high-power circuits with low-power signals, enabling safe operation
A relay is essentially an electromagnetic switch designed to control high-power circuits using low-power signals, ensuring safe and efficient operation in automotive systems. At its core, a relay consists of an electromagnet (coil), an armature, and a set of contacts. When a low-power electrical signal is applied to the coil, it generates a magnetic field that attracts the armature, causing it to move. This movement either closes or opens the contacts, allowing or interrupting the flow of high-power current in the connected circuit. This mechanism enables a small control signal, such as one from a car’s switch or computer, to manage much larger electrical loads, like headlights or fuel pumps, without overloading the control circuit.
The primary function of a relay in a car is to act as an intermediary between low-power control devices and high-power components. For example, when you turn on your car’s headlights, a low-power signal from the switch activates the relay’s coil. The resulting magnetic field pulls the armature, closing the high-power contacts and allowing current to flow to the headlights. This separation of control and power circuits ensures that sensitive switches and control modules are not exposed to the high currents required by the loads, enhancing safety and reliability.
Relays also provide electrical isolation between the control and power circuits, which is crucial for preventing voltage spikes or interference from damaging the control system. This isolation is particularly important in modern vehicles, where electronic control units (ECUs) manage numerous functions. By using relays, the ECU can safely control high-power devices without risking damage from the high currents or voltages involved.
Another key advantage of relays is their ability to handle multiple circuits simultaneously. A single relay can control several high-power circuits by incorporating additional sets of contacts, making it a versatile component in complex automotive electrical systems. This capability is often used in applications like fan motors, where multiple speeds or functions need to be managed by a single control signal.
In summary, a car electrical relay operates as an electromagnetic switch that bridges the gap between low-power control signals and high-power circuits, ensuring safe and efficient operation. By isolating control and power circuits, handling high currents, and enabling the management of multiple loads, relays play a vital role in modern automotive electrical systems. Understanding these basics is essential for diagnosing and maintaining vehicle electrical issues effectively.
