Casing and capping wiring is a popular electrical wiring technique that offers practicality and versatility in various applications. It involves routing electrical cables within a protective casing and capping structure, ensuring safety, minimising clutter, and enhancing aesthetics by concealing wires. The process begins with planning the wiring route and preparing the electrical cables. The casing, acting as a protective conduit, is then mounted along the designated path, followed by capping placement to secure the casing and provide a polished finish. Finally, the cables are connected to switches, sockets, and fixtures. This system is widely used in telecom installations and is suitable for both indoor and outdoor applications. It offers benefits such as durability, protection, flexibility, cost-effectiveness, and electrical safety.
Characteristics and Values of Electric Casing Wiring
| Characteristics | Values |
|---|---|
| Wiring Type | Casing and capping wiring |
| Wiring Material | PVC, uPVC |
| Wiring Shape | Rectangular |
| Advantages | Practicality, versatility, safety, durability, protection, flexibility, cost-effectiveness, fire resistance, lightweight, long life |
| Disadvantages | Not suitable for residential buildings or locations with a risk of tampering |
| Installation Process | Planning, wiring preparation, casing installation, capping placement, electrical connection |
| Joints | T-joint, L-joint, bridge joint, elbows, tees, 3-way/4-way junctions |
| Clamps | Necessary to hold wires inside the casing |
| Earthing | Protective conductor for earthing of metallic boxes of installations and connections |
| Capping | Slide-in type with double grooving, plain type for metallic wireways |
| Thickness | 1.2 mm +/- 0.1 mm |
Explore related products
What You'll Learn
Planning the wiring route
Firstly, understand the specific needs and layout of the space. Each room has unique electrical requirements. For instance, kitchens and bathrooms need ground-fault circuit interrupter (GFCI) protection, while living rooms and bedrooms may require additional outlets for electronics. Consider the functions of each area to determine the optimal placement of outlets, switches, and fixtures.
Next, familiarize yourself with the different types of electrical wiring and their purposes. For example, casing and capping wiring, which involves running wires through a protective casing, is easy to repair but less commonly used in modern homes due to its bulkiness. Conduit wiring, on the other hand, offers high durability and protection, making it a preferred choice for modern installations. Understanding the pros and cons of each wiring type will help you select the most suitable option for your project.
Additionally, it is essential to consider safety and compliance. Understand wire colour codes to ensure correct identification and connection during installation. Follow local codes and regulations for wire routing and protection to ensure your wiring system meets safety standards. Obtain a permit and schedule inspections to ensure your project complies with electrical safety requirements.
Furthermore, create a detailed plan for the wiring route. Draw a map of the room or area, indicating the placement of lighting, switches, and outlets. Label the wires to correspond with the plan, ensuring a clear roadmap for the installation process. This step helps you visualize the wiring layout and make any necessary adjustments before beginning work.
Finally, consider future smart home integration. Modern electrical systems can incorporate energy-efficient technologies and smart home features. When planning your wiring route, think about including smart switches, outlets, and control panels to enable future automation and enhance energy efficiency in your space.
Finding Diameter: Electrical Mobility Calculations Simplified
You may want to see also
Explore related products
Wiring preparation
The first step in wiring preparation is to measure and cut the electrical cables to the correct length, ensuring they fit within the designated casing. The wires should be PVC-insulated and placed inside a rectangular-shaped plastic casing. The casing channels and caps are typically available in standard lengths of 1 meter, 10 feet, and 6.5 feet. Cut the casing channels to the required length, allowing for the capping cover.
It is important to note that the casing and capping should be made of good quality PVC, free from defects such as deformation, unevenness, blisters, or cavities. The thickness of the casing and capping should be standardized at 1.2 mm, with a tolerance of +/- 0.1 mm.
To ensure the wires remain securely inside the casing, necessary clamps shall be provided at suitable intervals. This will prevent the wires from falling out when the capping is opened. A protective conductor should also be drawn inside the casing for earthing of metallic installations and connections to the earth pin of socket outlets.
Before installing the casing, it is essential to apply a 0.1-inch insulator between the wall and the casing to prevent wall humidity from affecting the system. The surface should then be grooved with a 1/4-inch width, and the screws should be drilled into the casing at a distance of 30 cm from each other.
Digging Electrical Cable Trenches: How Deep Should You Go?
You may want to see also
Explore related products

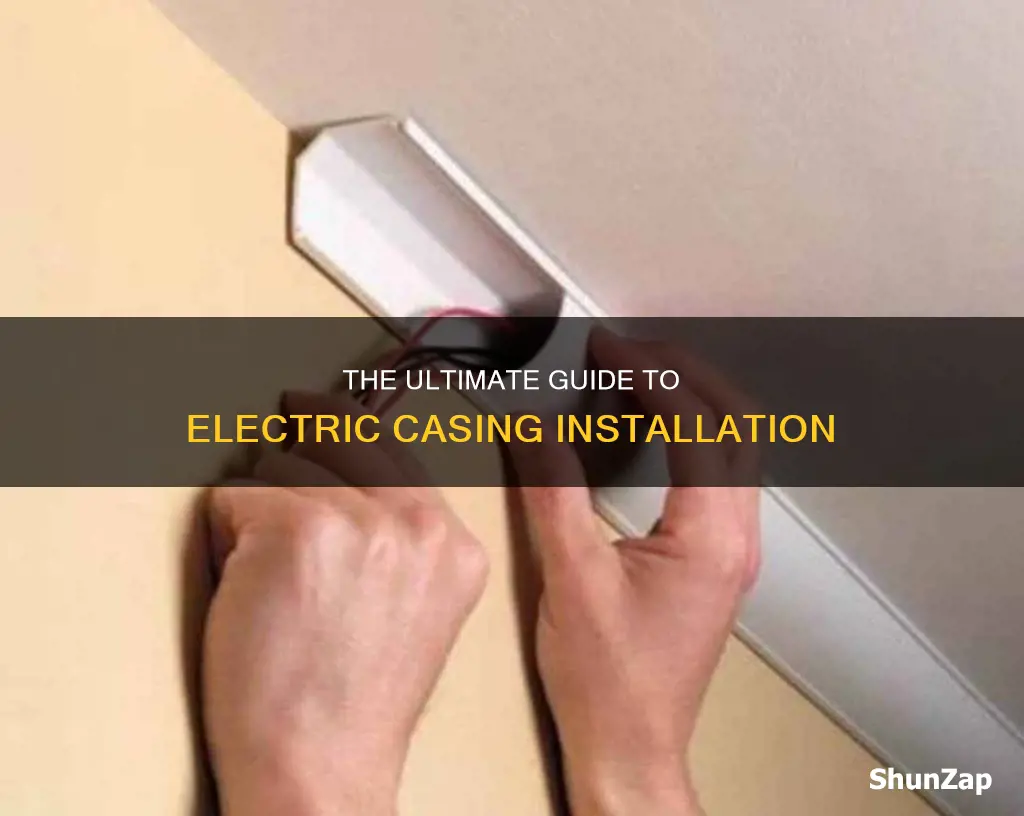

Casing installation
The first step in the installation process is planning. This involves mapping out the wiring route and determining the placement of casing and capping components. It is important to select the appropriate type of casing and capping for the specific application, taking into account factors such as wire and cable sizes, environmental conditions, and aesthetic preferences.
The casing itself can be made of different materials, with PVC and uPVC being common choices due to their durability, heat resistance, electrical safety, and cost-effectiveness. The casing should be fixed using suitable flat-head screws to the fixing plugs at regular intervals. Necessary clamps shall be provided to hold the wires inside the casing, ensuring they remain in position when the capping is opened.
When installing the casing, it is important to ensure that the surfaces are smooth and free from defects. The wireways in straight runs should be in a single piece to avoid joints, and all joints should be smoothed down and screwed together securely. The joints can be created using standard accessories like elbows, tees, and junctions, ensuring that the radius of curvature of the cables inside a bend is not too tight.
Understanding Electrical Load Calculations: A Comprehensive Guide
You may want to see also
Explore related products
$25.99 $29.99
Capping placement
The capping placement process begins with selecting the appropriate capping type. The capping should be chosen based on the wiring system, with slide-in capping with double grooving used for PVC wireways and plain capping for metallic wireways. The capping should also be of good quality PVC, free from defects like deformation, ensuring durability and reliability.
During installation, it is essential to follow specific guidelines. Firstly, joints in the capping should not overlap those in the casing. This ensures a neat and secure fit. Secondly, capping shall be attached to the casing in individual sections only after the insulated wires are laid inside and inspected. This ensures that the wiring is correct and approved before finalisation.
The capping should be fixed using suitable flat-head screws to the fixing plugs at intervals not exceeding 60 cm. This provides a secure and sturdy hold for the capping. Additionally, necessary clamps shall be provided to hold the wires inside the casing, ensuring that they remain in position even when the capping is opened.
Vaseline's Role in Preventing Electrical Connection Corrosion
You may want to see also
Explore related products
Electrical connection
Casing and capping wiring is an electrical wiring technique that offers practicality and versatility. It is a concealed wiring system that routes electrical cables within a protective casing and capping structure, ensuring safety, minimising clutter, and enhancing aesthetics.
The process of electrical connection involves connecting the cables to switches, sockets, and other fixtures as per the electrical layout. This step is preceded by planning, wiring preparation, casing installation, and capping placement. Planning involves mapping out the wiring route and determining the placement of casing and capping components. During wiring preparation, electrical cables are measured, cut, and prepared to fit within the casing. The casing, which acts as a protective conduit, is then mounted along the designated route. Finally, during capping placement, the capping is installed to cover and secure the casing, providing a polished finish.
Different types of joints, such as T-joints, L-joints, and bridge joints, are used to install the casing and capping wiring system both vertically and horizontally. The wireways in straight runs should be in a single piece to avoid joints, and all joints should be smoothed down and screwed together. Necessary clamps shall be provided to hold the wires inside the casing, and a protective conductor shall be drawn inside for earthing.
Casing and capping wiring is suitable for indoor wiring due to aesthetics and technical requirements. It offers advantages such as durability, protection, flexibility, ease of installation, cost-effectiveness, electrical safety, and fire resistance. uPVC casing and capping are available in different colours and sizes to accommodate various applications and can be painted to match the decor.
Electric Chair Executions: Any Survivors?
You may want to see also
Frequently asked questions
Casing and capping wiring is a concealed wiring system that routes electrical cables within a protective casing. It is a prominent electrical wiring technique that offers practicality and versatility in various applications.
Casing and capping wiring offers safety benefits, a seamless installation process, and adaptability to diverse environments. It also minimises clutter and enhances the aesthetic appeal of spaces by concealing wires behind a neat and streamlined exterior.
PVC (or uPVC) is a commonly used material for casing and capping wiring. It is lightweight, durable, flexible, cost-effective, electrically safe, and fire-resistant. It is also heat-resistant and non-conductive, adding extra layers of safety.
