Trystan Casey

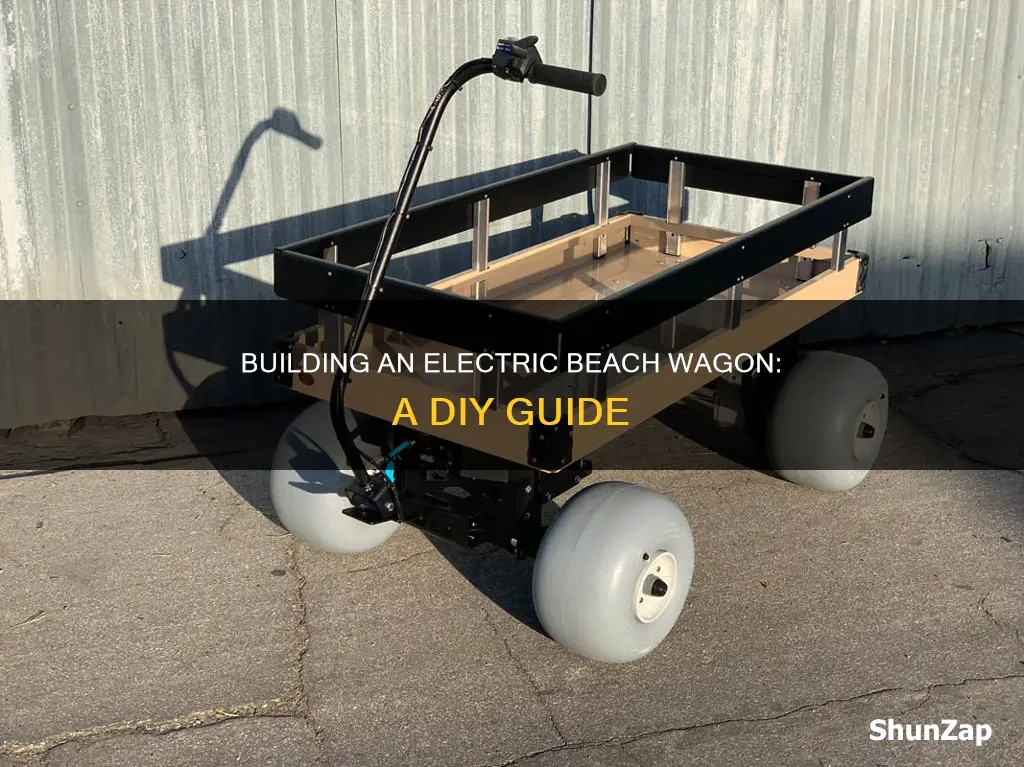

Building an electric beach wagon can be a fun project, and it's a great way to make trips to the beach more enjoyable and efficient. Electric beach wagons are ideal for families and beach resorts, making it possible to transport beach equipment, drinks, and food in one go. When building an electric beach wagon, there are several factors to consider, such as the desired speed, voltage, wheel size, and load capacity. Various kits are available that provide the necessary parts to electrify a beach wagon, and customization options are also possible. In this discussion, we will explore the process of building an electric beach wagon, including motor and battery selection, speed control, and the different kits available to help you get started on your project.
| Characteristics | Values |
|---|---|
| Wheels | 18.5" diameter (8.5" wide on 8" rims) |
| Axle | 44" wide go-cart axle, 1" diameter with a step down to 3/4" and a 1/4" keyway |
| Motor | 24V/450W, 36V/600W |
| Gear Ratio | 7.2:1 |
| Voltage | 24V, 36V |
| Speed | 3-4 mph |
| Weight | Less than 100 lbs |
| Batteries | 12v Ah, 3.5 Ah, 5.0 Ah, 22 Ah, 35 Ah, 55 Ah, 30 Ah, 50 Ah, 50 Ah BB |
| Kits | KIT-140, KIT-142, KIT-143, KIT-144, KIT-149, KIT-328-C |
Explore related products
What You'll Learn
Choosing the right motor for your electric beach wagon
When building an electric beach wagon, it's important to choose the right motor to ensure optimal performance and efficiency. Here are some key considerations for selecting the appropriate motor:
Voltage and Wattage
The voltage and wattage of the motor are crucial factors. Beach wagons commonly use 24-volt or 36-volt motors, with wattages ranging from 350 watts to 600 watts. The voltage and wattage combination will impact the speed, power, and runtime of your wagon. For example, a higher-wattage motor, like a 450-watt or 600-watt motor, can provide more power for heavier loads or navigating challenging terrain like sand and inclines.
Gear Ratio
The gear ratio is another essential aspect when choosing a motor. It determines the balance between speed and torque. Most beach wagon builders aim for a top speed of around 3 to 4 miles per hour, with ample torque to climb hills and navigate deep sand. A lower gear ratio will provide higher torque, beneficial for climbing steep inclines or traversing sandy beaches.
Runtime and Battery Size
Consider how long you plan to use the beach wagon each day. If you only need it for short periods, smaller batteries and a lower-wattage motor may suffice. For example, two 12-volt 5-amp-hour batteries could be suitable for approximately 10 minutes of daily usage. However, if you require longer runtimes, larger batteries and a higher-wattage motor will be necessary.
Reverse Functionality
Decide whether you want your beach wagon to have the ability to move in reverse. This feature typically comes at an additional cost, but it can enhance the maneuverability of your wagon, especially in tight spaces or when navigating sharp turns.
Load Capacity
The intended load capacity of your beach wagon will influence your motor selection. If you plan to carry heavy loads, opt for a more powerful motor. For example, a 350-watt motor can handle a heavy load of up to 300 pounds when paired with an appropriate gear ratio that provides a 3-4 mph top speed.
By carefully considering these factors, you can choose the right motor for your electric beach wagon, ensuring it meets your specific performance, speed, and load requirements.
Comparing Electric Rates in Ohio: What You Need to Know
You may want to see also
Explore related products
Selecting the appropriate gear ratio
When building an electric beach wagon, selecting the appropriate gear ratio is crucial. The gear ratio determines the balance between the speed and torque of your wagon. A lower gear ratio provides more pulling power, making it ideal for navigating through deep sand or climbing hills. Conversely, a higher gear ratio results in higher speeds but may cause the motor to lug and overheat, leading to potential burnout.
To achieve a lower gear ratio, consider using a larger sprocket. For instance, an 80-tooth sprocket will offer a lower gear ratio compared to a 72-tooth sprocket. This is particularly useful if you plan to use your wagon on sandy terrain or steep inclines. It's important to note that while a lower gear ratio enhances torque, it may slightly compromise the top speed of your wagon.
On the other hand, if speed is a priority, you can opt for a smaller sprocket, such as a 10-tooth sprocket. This will result in a higher gear ratio, allowing your wagon to achieve higher speeds. However, be cautious not to sacrifice too much torque, especially if you intend to use your wagon on challenging terrain. Striking the right balance between speed and torque is essential to ensure your wagon can handle various conditions effectively.
When selecting the gear ratio, it's important to consider your intended use case. If you plan to use your beach wagon primarily for leisure strolls on flat, hard-packed sand or pavement, a standard gear ratio that achieves walking speeds of around 3-4 mph is suitable. In this case, a 350-watt motor with a gear ratio providing a 3-4 mph top speed can handle heavy loads of up to 300 pounds.
However, if your beach wagon will be hauling heavier loads or navigating through deep sand and steep hills, consider opting for a more powerful motor with a lower gear ratio. A 450-watt motor geared for speeds between 3-4 mph will provide ample torque to climb hills and handle heavy loads. Additionally, a 36V 600W gear motor is an excellent choice for heavy-duty applications, offering increased power and compatibility with heavier-duty chains.
Sheep Shearing Before Electricity: Ancient Tools and Techniques
You may want to see also
Explore related products
Adding a reverse switch
There are several kits available that include a reverse switch, such as KIT-140, KIT-142, KIT-144, KIT-145-B, and KIT-105. These kits typically include a 24-volt or 36-volt power source and a motor with a wattage ranging from 350 to 600. The gear ratio is an important consideration when choosing a kit, as it will determine the top speed and torque of your wagon. For beach wagons, a top speed of around 3-4 miles per hour and high torque are desirable to navigate deep sand and steep inclines.
When installing a reverse switch, it is essential to consider the placement of the switch. Many users prefer to have the switch conveniently located on the steering handle or the wagon handle, making it easily accessible. Additionally, ensure that the wiring between the batteries, controller, and motor is of sufficient length and properly connected.
If you are building your electric beach wagon from scratch, you may need to source the reverse switch separately and integrate it into your design. In this case, you will need to carefully plan the wiring and ensure that the switch is compatible with your motor and power source.
Remember that adding a reverse switch may increase the cost and complexity of your build, but it will significantly enhance the functionality and manoeuvrability of your electric beach wagon.
Electric Furnace Wiring: Do You Need a Neutral Wire?
You may want to see also
Explore related products
Using the right wheels and tires
When it comes to building an electric beach wagon, selecting the right wheels and tires is crucial. The type of wheels and tires you choose will depend on various factors, including the desired speed, load capacity, terrain, and your budget. Here are some important considerations to help you make an informed decision:
First, determine the desired speed for your electric beach wagon. The speed is influenced by factors such as the motor voltage, wheel size, and gear ratio. If you want a faster wagon, consider using a higher voltage motor, such as a 36V or 48V system. Additionally, larger wheels can contribute to increased speed. However, it's important to strike a balance, as larger wheels may impact the wagon's maneuverability.
Next, consider the load capacity you require. If you intend to carry heavy loads, opt for sturdier wheels and tires that can withstand the weight. Balloon tires, for example, are constructed from a soft, durable material that adapts to various terrains, making them ideal for carrying heavy loads over sandy terrain. On the other hand, black plastic or rubber tires are more affordable but have limited weight capacity, making them suitable for lightweight items.
The terrain you'll be traversing is another significant factor. If you'll be navigating sandy beaches, balloon tires are once again an excellent choice as they glide over sand more effectively than smaller wheels, which tend to sink. Additionally, wider wheels generally perform better on sand than narrow ones. If you plan to use your wagon on a variety of surfaces, including pavement or concrete, consider the trade-off between traction and maneuverability.
Lastly, your budget will play a role in your decision. Balloon tires tend to be more expensive, while black plastic or rubber tires are more economical. However, keep in mind that cheaper options may not provide the same performance or durability as their more expensive counterparts.
In conclusion, carefully assess your specific requirements and the conditions in which you'll be using your electric beach wagon. By taking into account factors such as speed, load capacity, terrain, and budget, you can make an informed decision about the right wheels and tires for your project. Remember that striking a balance between these factors will help ensure that your electric beach wagon is safe, functional, and enjoyable to use.
Becoming an Electrical & Electronic Repair Expert
You may want to see also
Explore related products
Ensuring safety and durability with a braking system
Braking System Components:
- Brake Handle: Include a brake handle that can be easily accessed and operated by the user. This handle should be able to apply the brakes to the rear wheels and also function as a parking brake to keep the wagon stationary when parked.
- Regenerative Braking: Implement a regenerative braking system, which will add life to your battery power. When the wagon slows down, the braking system can regenerate the batteries, maximizing the range of your electric beach wagon.
- Disc Brakes: Consider using disc brakes, specifically rear-wheel stainless steel disc brakes, to control downhill speed effectively. Disc brakes offer superior braking performance compared to other types of brakes.
Safety and Durability Considerations:
- Speed Control: Ensure that the electric beach wagon has a speed control mechanism, such as a throttle, to limit the maximum speed. This is crucial for safety, especially when children are riding in the wagon.
- Battery Size and Voltage: Determine the appropriate battery size and voltage based on the intended usage. Consider how long the wagon will be in use each day and the desired top speed. Larger batteries will provide a longer runtime, and higher voltages (e.g., 36V) will generally offer more power.
- Motor Selection: Choose a suitable motor that can handle the desired load capacity and terrain. For heavy-duty applications, consider using more powerful motors, such as 36V 600W gear motors, which are designed to carry loads and handle inclines.
- Gear Ratio: Calculate the gear ratio between the motor and the drive wheel or axle to ensure optimal performance. A higher gear ratio will provide more torque, which is essential for navigating hills and deep sand.
- Freewheel Clutches: If you prefer to be able to disengage and pull the wagon manually when the battery runs out, consider installing freewheel clutches. These allow the wagon to be pushed without engaging the motor.
By incorporating these braking system components and considering the safety and durability factors mentioned above, you can build an electric beach wagon that is safe, efficient, and long-lasting. Remember to refer to specific electric beach wagon kits and resources for more detailed instructions and parts lists.
Electric Dreams: Indy's Electric IndyCar Revolution
You may want to see also
Frequently asked questions
The gear ratio between the motor and the drive wheel or axle, the desired top speed, the desired torque, and the weight of the wagon and its cargo.
KIT-140, KIT-142, KIT-144, KIT-149, KIT-328-C.
A variable speed control, forward and reverse switch, automatic brake system, and a digital programmable motor controller for safety and durability.
12" or 16" Wheeleez low-pressure tires are known to be ideal for beach sand use.
The desired voltage, wattage, and gear ratio, as well as whether a reverse switch is desired.
