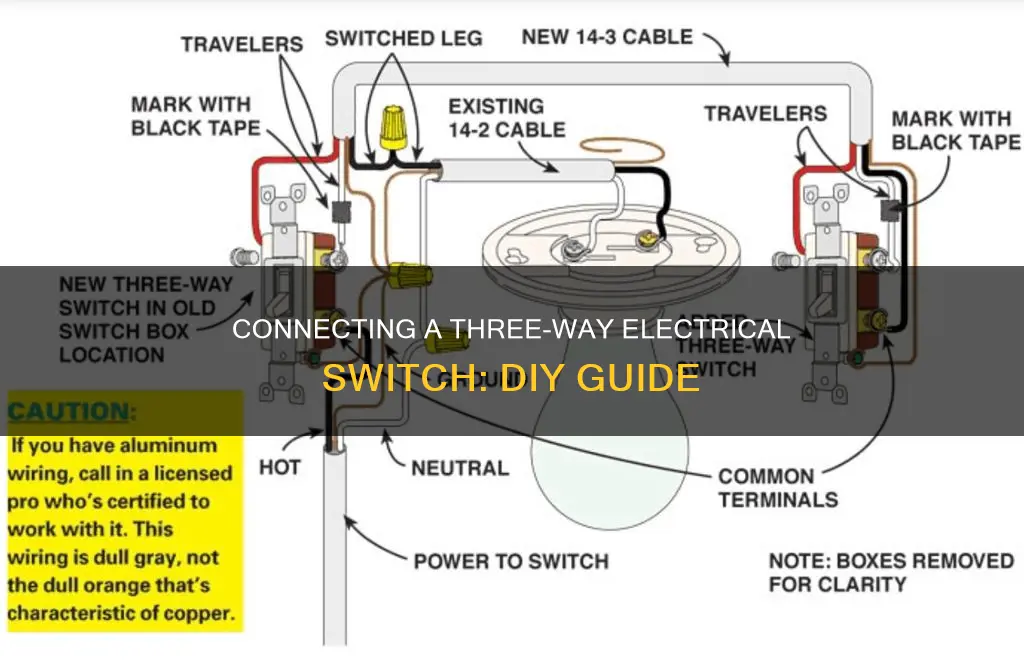

Unlike a single-pole switch, which only controls lights from one location, a 3-way switch allows you to control lights from two locations. This is useful if you want to turn on a light from either side of a room or at the top and bottom of a staircase. To wire a 3-way switch, you will need to connect two 3-way switches using two terminals for travellers. This setup can be achieved by using the common terminal and one of the traveller terminals for incoming and outgoing power, while the other traveller terminal remains empty. It is important to note that only one 3-way switch in a room requires a neutral wire, and the specific wiring method chosen should comply with local electrical codes.
| Characteristics | Values |
|---|---|
| Number of terminals for travelers | Two |
| Number of switches required | Two |
| Wire colors | Black, red, green |
| Wire type | 14-2 cable, 14-3 cable |
| Wire connections | Black wire to black (common) screw, traveler wires to brass screws |
| Tape usage | Wrap electrical tape around exposed terminals |
| Grounding | Splice bare grounds to copper pigtail and attach to green screw |
| Neutral wires | Not required in all switch boxes, only one 3-way switch in a room needs a neutral |
Explore related products
What You'll Learn
Wiring a three-way switch for multiple lights
There are several ways to wire a three-way switch for multiple lights, and the best method may depend on the layout of the room and your specific needs. One option is to wire all the lights on this switch in series together, and then bring a switch leg down to a switch location. From that switch, you will need a three-wire to the second switch. If you need more locations, you can add four-way switches in between the two three-way switches. This will allow you to switch the two inputs with respect to the two outputs.
Another option is to have the power come into the first switch, then wire to the lights, and finally wire from the light to the other switch. This method requires two Romex lines between the lights. A third option is to have the power come into the first switch, and then run wires separately from the first switch to the lights and from the first switch to the second switch.
When wiring a three-way switch, it is important to note that only one three-way switch in a room needs a neutral. Newer three-way switches are labelled as 'Common' on the back of the switch, next to the Common terminal screw. To wire the switch, secure the traveller wires (black and red) from the 14-3 cable to the brass screws. It does not matter which wire goes where. Then, wrap electrical tape around the switch to cover the exposed terminals and secure the switch into the box. Next, splice the two bare grounds to a copper pigtail and attach to the green screw. Again, splice the two neutrals together, but do not attach them to the switch. Finally, secure the black wire from the 14-2 cable going to the light to the black (common) screw, and secure the black and red traveller wires to either of the brass traveller screws. Wrap the switch with tape and attach it to the box.
Fixing Your FitBit: Repairing the Metal Electric Point
You may want to see also
Explore related products
Using a single-pole switch vs. a three-way switch
A single-pole switch is a straightforward mechanism used to control a light or lights from a single location. One wire comes in from the power source, and one wire goes out to the light(s). It is the simplest type of light switch, featuring just one ground screw and two hot screws. Single pole switches are widely favoured for their ease of installation and straightforward operation, making them suitable for most basic lighting needs.
However, their utility is limited to simple on/off operations from one location. In some applications, such as hallways and larger rooms, having a single switch can be inconvenient, and it might be useful to control the light from two locations. This is where 3-way switches come in. Unlike single-pole switches, 3-way switches work in pairs and allow control of a single fixture from two different locations. They do not have "ON" or "OFF" labels because the switch can be active in either position. A 3-way switch adds two terminals for travellers, which connect two 3-way switches together. It features three terminals: one common and two travellers, as well as a ground terminal for safety. The common terminal connects to the main power source or the light, depending on the switch's position in the circuit, while the traveller terminals handle the interchange of electricity between switches.
While single-pole switches are suitable for small spaces with one entrance, 3-way switches are ideal for large spaces or multiple entry points where control over lighting from different locations is necessary. They are commonly installed at both ends of a staircase or hallway, allowing the lights to be conveniently turned on or off from either end. 3-way switches are more complex to install than single-pole switches, and they are also more expensive. However, they offer greater flexibility and are a good option for spaces where a single switch would be inconvenient.
In addition to single-pole and 3-way switches, there are also 4-way switches, which enable control from three or more locations when used with two 3-way switches. 4-way switches provide the most extensive control but require the most complex installation.
Ceiling Fan Speed: Electricity Consumption's Worst Enemy?
You may want to see also
Explore related products
Connecting the traveller wires
First, it is important to understand that a 3-way switch has two terminals for travellers, which connect the two 3-way switches together. The terminals are labelled as 'Common' and 'Traveller'. The Common terminal is the key connection point, while the Traveller terminal enables the electrical flow to move back and forth between the two switches.
Now, let's get into the step-by-step process of connecting the traveller wires:
- Identify the traveller wires: The traveller wires are usually black and red. They are part of the 14-3 cable, which means there are three wires in total, including a white neutral wire.
- Connect the traveller wires to the terminals: Secure one end of the black and red traveller wires to the brass screws on the 3-way switch. It doesn't matter which wire goes to which screw. The brass screws are typically located next to the Common terminal screw, which is labelled as such.
- Secure the wires: Ensure that the wires are securely fastened to the screws. You may need to strip a small portion of the wire insulation to expose the copper conductor and achieve a good connection.
- Insulate the connections: Once the traveller wires are securely connected, use electrical tape to cover any exposed terminals or connections. This step is crucial for safety, as it prevents accidental contact with live electrical parts.
- Repeat for the second switch: The 3-way switch setup requires two switches, so you will need to connect the traveller wires to the second switch following the same steps. Ensure that the traveller wires from the first switch are long enough to reach the second switch's location.
- Test the setup: After connecting the traveller wires to both switches, you can test the setup by turning the power back on and operating the switches. Ensure that the lights can be controlled from both locations.
Remember, when working with electrical wiring, it is essential to follow safety precautions. Always turn off the power before beginning any work and verify that the power is off using a voltage tester. Additionally, if you are uncomfortable or unfamiliar with electrical work, it is best to consult a certified electrician.
How to Prove Electricity in Your Trailer
You may want to see also
Explore related products
Grounding a three-way switch
Grounding is an essential aspect of electrical safety, and when installing a three-way switch, it is vital to ensure proper grounding. Here is a detailed guide on grounding a three-way switch:
Identifying the Grounding Screw
Three-way switches typically have a grounding screw, which is usually green and attached to the metal strap of the switch. This screw is specifically designed to connect to the ground wire, which is either a bare copper wire or a green insulated wire within the circuit. The grounding screw may be located on the bottom, side, or another part of the switch. It is important to note that older switches may not have a grounding screw, so if you are replacing one of these, opt for a newer, grounded switch.
Connecting the Ground Wire
The ground wire is connected to the grounding screw. If your switch is self-grounding, simply screwing it into the metal box should suffice. Self-grounding switches often have a metal clip on the screws used for attachment. However, if it is not self-grounding, you will need to attach a wire to the grounding terminal.
Using a Pigtail Wire
If you encounter a switch without a ground wire, you can use a pigtail wire to create a safe ground connection. Obtain a short length of green or bare wire, matching the size of the largest wire in the box. Attach one end of this wire to the box using the grounding screw, wrapping the wire clockwise and tightening the screw. Then, attach the other end of the wire to the grounding terminal on the new switch, again wrapping it clockwise and tightening the screw.
Grounding Multiple Switches
In a three-way switching setup, each switch should be grounded. The National Electrical Code (NEC) requires that a grounded conductor is present at least at one end of a three-way switch setup. However, it is considered best practice to have a neutral wire (and, by extension, a ground wire) at every switch in the setup. This ensures optimal safety and functionality.
Remember, when dealing with electrical installations, safety should always be the top priority. If you are unsure about any aspect of the process, it is best to consult a certified electrician.
Boosting Electric Fence Voltage: Simple and Effective Methods
You may want to see also
Explore related products
Using electrical tape to cover exposed terminals
When installing a 3-way electrical switch, it is important to ensure that all exposed terminals are covered for safety reasons. Electrical tape can be used for this purpose, providing an additional layer of insulation and protection against accidental shorts.
While the use of electrical tape to cover exposed terminals is not mandatory, it is considered good practice by some electricians. It is especially useful when working with metal boxes or in situations where mounting screws may come loose or plugs may be tugged on, reducing the risk of an arc or electrical short.
To effectively use electrical tape to cover exposed terminals in a 3-way switch:
- Ensure you have quality electrical tape designed for this purpose. Avoid very cheap options.
- Wrap the tape around the switch, covering any exposed metal terminals. Aim for 3-4 layers of tape to ensure a secure fit and comprehensive coverage.
- Pay close attention to the side screws, ensuring they are adequately covered to prevent arcing.
- Make sure the tape is smooth and secure, with no loose ends that could unravel over time.
It is important to note that electrical tape should not be the sole means of protecting a splice. It is an additional safety measure to prevent accidental contact with live terminals and potential electrical hazards. Always exercise caution and follow proper procedures when working with electrical wiring and switches.
The Ultimate Guide to Packing an Electrical Seal Off
You may want to see also
Frequently asked questions
Unlike single-pole switches that control lights from one location, 3-way switches work in pairs, allowing you to control lights from two locations.
You will need to connect the black and red traveller wires from the 14-3 cable to the brass screws. It doesn't matter which wire goes where. You will also need to connect the black wire from the 14-2 cable going to the light to the black (common) screw.
The simplest way to wire a 3-way switch is to wire however many lights are on the switch in series together. Then, bring down a switch leg to a switch location. From that switch, you will need a 3-wire to the second switch.
