Electric fences are a simple and effective way to contain livestock and keep out unwanted visitors. They are also easy to install and maintain. When installing an electric fence, it is important to consider the area you are covering and the type of fence you will use, whether that be electric netting, electric fence tape, rope, or wire. Gate handles come in various shapes and sizes, with different connections depending on whether your fence is constructed using tape, wire, rope, or bungee rope. For permanent gateways, it is necessary to run a heavily insulated cable under the entrance to keep both sides of the gate connected and maintain the electric current.
Explore related products
What You'll Learn
Planning the layout and gate type
First, determine the purpose of your electric fence. Consider whether you need to keep livestock contained, deter wild animals or intruders, or create a barrier for a specific area. This will influence the layout and gate type you choose. For example, if you're containing livestock, you'll need to ensure the fence and gate are high enough to prevent them from escaping, and if you're deterring intruders, you might want to include warning signs.
Next, carefully measure the area you plan to enclose. This will help you decide on the appropriate length, height, and number of wires or posts needed for your electric fence. Consider the spacing between posts, ensuring they are not placed too close together or too far apart, which can affect the stability of the fence. Decide on the number of wires necessary, taking into account the number and type of animals you need to control.
Now, let's discuss the placement of your gate. Plan where the entrance gate will be located along your fence line. Consider using corners to break up the fence line, making it less obvious that there are electrified wires near the opening. For interior fences that divide a large area into smaller sections, a simple gate opening, like a single wire attached to a gate handle, may be sufficient. For perimeter fencing, a more permanent and sturdy gate, such as a heavy metal gate, is recommended.
When selecting the type of gate, you have options like wire gates, drive-thru gates, or bungee cord gates, which are an elasticated version of electric fence rope. Gate handles come in various shapes and sizes, with options for tape, wire, rope, or bungee rope connections. Consider handles with springs to allow for tighter cable stretching while maintaining easy opening and closing. Choose handles that are specific to the type of post or wire you are using, and ensure you have the appropriate gate-handle kits.
Finally, to ensure your fence remains electrified when the gate is open, you will need to run an insulated cable underground. This cable should be buried at least 25 to 30 cm below ground, and you can use plastic pipe to protect it from damage and prevent water ingress. This setup will maintain the flow of electricity around the fence, keeping the gate and fence electrified even when the gate is open.
By carefully planning the layout and considering the various gate options, you can ensure your electric fence effectively meets your specific needs.
Protecting Yourself: Avoiding Electrical Hazards
You may want to see also
Explore related products
Installing the charger and grounding system
To install the charger and grounding system for your electric fence gate, follow these steps:
- Install the electric charger near a power source: Place the charger near an AC outlet if you're using a plug-in model. If you're using a solar-powered charger, find a sunny spot. It's important to keep the charger a safe distance from the gate to avoid any interference with the gate's function.
- Install grounding posts: Use a post-hole digger to install at least one grounding post that's 6 feet (1.8 meters) or longer near the charger. The grounding post should be placed several feet above the ground. If possible, use three 6-foot-long ground rods, spaced 10 feet apart, to ensure an effective ground system.
- Connect the grounding wire: Run a grounding wire from the charger to all of the grounding posts. This step is crucial for establishing a proper electrical connection.
- Connect to the fence: Use insulated cable rated for high voltage (up to 20,000 volts) to connect the charger to the electric fence. This cable should be buried at least 25 to 30 cm below ground to protect it from damage and ensure the continuous flow of electricity through the fence, even when the gate is open.
- Use a plastic pipe for added protection: Consider running the insulated cable through a plastic pipe to protect it from heavy traffic damage or being cut by stones. Seal the ends of the pipe to prevent water ingress.
- Maintain voltage at gates and corners: Ensure that all electrified wires are connected at gates and corners to increase the voltage along the length of the fence. This helps maintain a consistent shock deterrent for animals.
Understanding Wattage: Calculating Your Electrical Usage
You may want to see also
Explore related products
Bracing and reinforcing the gate
To brace and reinforce an electric fence gate, you need to ensure that the gate remains electrified when it is open. This can be achieved by running an insulated wire underground to allow the electric current to flow safely from one side of the gate to the other. The cable should be buried at a depth of at least 25-30 cm, and it is recommended to use a plastic pipe to protect the cable from damage and to prevent water from getting in. The pipe should be sealed at the ends.
Additionally, you can use braces, cement footings, or anchors to reinforce the gate. A common technique is to use a "floating diagonal" brace, which involves notching a 4-inch by 10-foot post into the main corner post, with the other end placed on the ground opposite the corner. This provides stability and reinforces the gate.
It is important to note that the gate handle should not be the only means of transmitting power from one side of the gate to the other, as this can weaken the power and create an inconsistent connection. Instead, the gate should be made from the same cable used in the fence system, ensuring a continuous flow of electricity.
For a more permanent gate, a sturdy metal gate on the perimeter of the fencing can be used. This provides a simple and effective solution for interior fences that divide a larger area into smaller sections.
Heaters: Electric or Gas-Powered? Understanding the Difference
You may want to see also
Explore related products
Running an insulated cable under the gate
To run an insulated cable under the gate, also known as a 'lead-out' cable, start by considering the type of gate you will be using in your fencing system. For a permanent gate, such as a heavy metal gate, you may require a more complex installation process compared to a simpler gate opening for interior fences. Ensure that you have the appropriate gate handle kits specific to the type of post or wire you are using. Expandable gate handles are recommended for use with spring gates.
Next, install an electric charger near an AC outlet or opt for a solar charger if you have access to a sunny spot. Install at least one grounding post that's 6 feet or longer near the charger. Then, run a grounding wire from the charger to the grounding post(s). Remember to place the charger in a convenient location, but not too close to the gate to avoid any obstruction.
Now, you can begin installing your fence posts, ensuring they are not placed too closely together, with a maximum recommended distance of 40 feet apart. After installing the posts, brace the corners and gates to reinforce them, especially for posts exposed to the most stress. Mount the insulators on the posts to keep the electricity in the wires and away from the posts.
Finally, run the insulated cable under the gate. It is recommended to use insulated cable with a diameter of 2.5mm for gateways due to thicker casing and heavier traffic. Before burying the cable, it is advisable to run it through a hose or plastic pipe to provide protection and act as a warning for future digging in the area. Ensure you use a 20,000-volt underground hookup wire to maintain electrification when the gate is open.
Craftsman Electric Weed Eater: Restringing Guide
You may want to see also
Explore related products
Attaching handles, anchors and insulators
Attaching handles, anchors, and insulators to your electric fence gate is a crucial step in ensuring its functionality and safety. Here's a detailed guide to help you through the process:
Attaching Handles

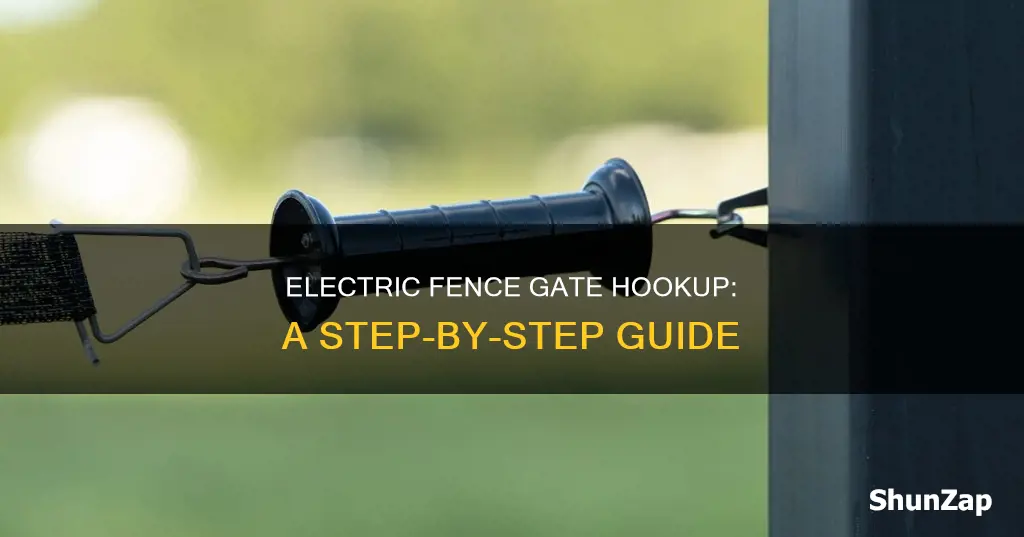

Gate handles are essential for operating the gate and come in various shapes and sizes. When attaching handles, it's important to consider the type of connection required, depending on whether your fence is constructed using tape, wire, rope, or bungee rope. Ensure that the handle is compatible with the type of cable you're using. For example, you can't squeeze a 40mm tape through a hole designed for wire without damaging the tape filaments. Some handles also feature a spring mechanism, allowing for tighter cable stretching while maintaining easy gate operation.
Anchors
Anchors are necessary to securely hold the gate and maintain the electric current. The metal, live part of the anchor features holes into which the gate handle can be hooked. It is important to use anchors specifically designed for your chosen cable type, be it tape, wire, or rope. For permanent gateways, it is recommended to run a heavily insulated cable under the entrance to keep both sides of the gate connected and maintain the electric current.
Insulators
Insulators are crucial to prevent electricity from flowing into the posts. They should be mounted on the posts, and then the wire is run between them. For gateway installations, you will typically need two gate insulators per line to attach your tape, bungee rope, or cable to the fence post. On one end, the insulator connects to the fence post, while the other end features a handle anchor insulator. This setup ensures that the electricity remains in the wires, keeping the gate functional and safe.
Remember to plan the placement of your gate carefully, considering the area you are covering and the type of fencing material you are using. Additionally, ensure that you follow safety guidelines and use appropriate protective equipment when working with electric fencing.
Solar Power: Converting Sunlight to Electricity
You may want to see also
Frequently asked questions
To hook up an electric fence gate, you will need to run an insulated cable under the gate. This will allow the current to run from one side of the fence to the other without interruption. The cable should be buried at least 25-30 cm below ground, and it is recommended that you protect it from damage by running it through a plastic pipe.
Before installing an electric fence gate, you will need to plan the area you are covering and the type of fencing you will use (netting, tape, rope or wire). You should also consider the number of animals you need to control and determine the spacing and number of wires you will need. It is important to reinforce the gate with braces, cement footings or anchors to ensure it is stable.
Gate handles come in various shapes and sizes, with different connections depending on whether your fence is constructed with tape, wire, rope or bungee rope. You should purchase gate-handle kits specific to the type of post or wire you are using. Expandable gate handles should be used with spring gates.
To ensure the fence remains electrified when the gate is open, you will need to run a heavily insulated cable under the entrance. This will maintain the flow of electricity around the fence. It is recommended to use a 20,000-volt underground hookup wire for this purpose.
