Electric chokes are an essential component of the carburetion system in scooters, helping to regulate the air-fuel mixture in the engine during start-up. When the engine is cold, it needs a richer mixture (extra petrol) to start and run. The choke circuit provides a method of increasing the fuel supply until the scooter has warmed up and then shuts off. This process can vary depending on the make and model of the scooter, and some scooters may not have components directly analogous to an electric choke. If you suspect there is a problem with the choke, you can test its functionality by locating the choke, performing a visual inspection, checking electrical connections, measuring resistance, testing the choke operation, monitoring voltage, inspecting after the engine start, and testing during a cold start.
| Characteristics | Values |
|---|---|
| Scooter engine temperature | Cold engines need a richer mixture (extra petrol) to start and run. |
| Choke circuit | A method of increasing the fuel supply until the scooter warms up, then it shuts off. |
| Manual vs. automatic choke | A manual choke is switched on and off by the rider, while an automatic choke does it automatically. |
| Testing the choke unit | Start and run the scooter for at least 5 minutes, then switch off the engine and quickly remove the choke unit. |
| Faulty choke unit | The choke unit itself may be faulty, or there may be a problem with the power supply to it. |
| Testing the power supply | Use a multimeter to test the power supply by disconnecting the automatic choke and touching the meter leads to the wires. |
| Voltage reading | The wires should give a reading of 12-14 volts AC. |
| Choke operation | With the engine off, turn the ignition key to the on position. Feel the unit with your hand; it should progressively get warm. |
| Voltage monitoring | Use a multimeter to monitor the voltage while the choke is warming up. It should receive battery voltage when activated. |
| Resistance measurement | Use a multimeter to measure the resistance of the choke's heating element. Consult your scooter's specifications for the correct values. |
| Continuity testing | Switch the multimeter to the continuity setting and place the probes on each terminal of the choke. A continuous circuit will produce a beep or indication on the multimeter. |
| Results evaluation | If the resistance or continuity tests deviate from the manufacturer's specifications, the choke may be faulty and require replacement. |
| Accessing the choke | Locate the electric choke, typically near the carburetor or throttle body, and access its wiring. |
| Visual inspection | Check for visible signs of damage, such as frayed wires or corrosion, which may affect functionality. |
| Electrical connections | Ensure all electrical connections to and from the choke are secure. |
| Cold start test | Observe the choke's behavior during a cold start. It should close immediately after the engine starts and gradually open as it warms up. |
| Maintenance | Regular testing and maintenance of the electric choke system can prevent startup issues and ensure smooth performance. |
Explore related products
What You'll Learn
Locate the choke

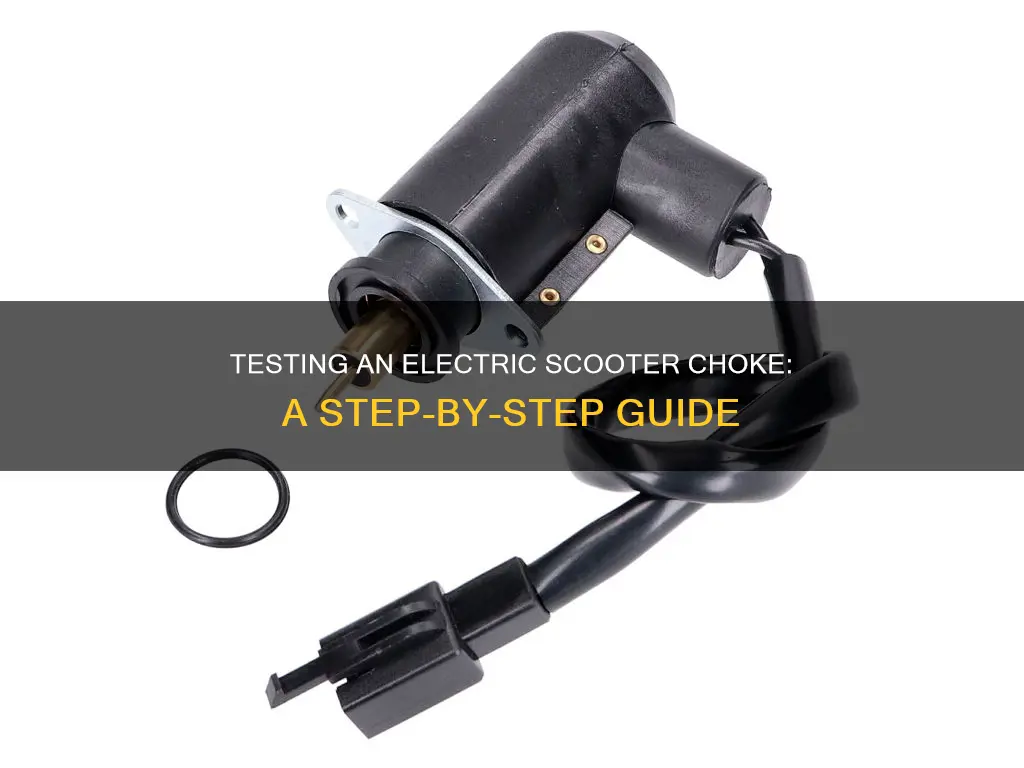

The electric choke on a scooter is typically found attached to the carburetor, which is usually located near the engine. The choke is designed to help the scooter's engine start and warm up by enriching the fuel mixture when the engine is cold. This ensures a smoother start-up and better performance in cooler conditions.
To locate the electric choke, begin by consulting your scooter's service manual, which will contain vital information specific to your model. This should guide you through the processes involved in any modification. Once you have familiarized yourself with the manual, you can begin to look for the choke. It is typically found on the side of the carburetor.
The electric choke will be connected to a power source, usually the ignition switch, so that it activates when the scooter is turned on. The choke circuit includes a plunger that opens or closes a small channel inside the carburetor, allowing or blocking extra fuel into the engine.
If you are having trouble locating the choke, it may be helpful to refer to a professional mechanic or technician to ensure proper installation and maintenance.
Repairing John Deere Electrical Connectors: A Step-by-Step Guide
You may want to see also
Explore related products
Check for physical damage
To check for physical damage to your scooter's electric choke, begin by locating the choke. It is usually situated near the carburettor or the throttle body. Consult your scooter's manual for the exact location and instructions on how to access it.
Once you have located the choke, perform a visual inspection for any visible signs of damage. Look for frayed wires or corrosion. Any physical damage to the choke or its connecting wires may affect its functionality. Ensure that all electrical connections leading to and from the electric choke are secure. Loose or disconnected wires can prevent the choke from operating correctly.
If you notice any damage, it is advisable to consult a professional mechanic or replace the unit if you are experienced with scooter repairs. Regular testing and maintenance of your electric scooter's choke system are crucial to your vehicle's performance and can help prevent startup issues.
Additionally, you can test the power supply by using a multimeter. Disconnect the automatic choke and touch the meter leads to the wires the choke was connected to while running the engine. Make sure not to touch the leads together. The wires should give you a reading of 12-14 volts AC. Note that the choke normally runs off the lighting circuit, so ensure you test with the meter set to AC as well as DC. The choke will work off either AC or DC, so as long as you have 12-14 volts, the power supply is fine.
Choosing an Electric Drum Set: What to Consider
You may want to see also
Explore related products
Test the choke's resistance
To test the choke's resistance, you will need a multimeter. First, locate the choke, which is typically situated near the carburettor or the throttle body. Next, carefully access the wiring connected to the choke—you may need to remove a panel or component to reach the wires.
Now, set your multimeter to the resistance (ohms) setting. Disconnect the wiring harness from the choke, and with the multimeter probes, touch each terminal of the electric choke. The multimeter will display a resistance value, which you can then compare to the specifications outlined in your scooter's service manual. If the resistance value deviates significantly from the manufacturer's specifications, it could indicate a faulty choke.
Please note that the choke draws about 1A of power, which can drain a small, weak, or not fully charged scooter battery.
Sexing Electric Blue Acaras: Male vs Female
You may want to see also
Explore related products
Test the choke's continuity
To test the choke's continuity, you will need a multimeter. This device will allow you to test the choke's resistance and continuity.
Firstly, ensure your electric scooter is turned off and the battery is disconnected to prevent any electrical shocks or short circuits. Next, locate the choke or starting component. In electric scooters, the choke can refer to a component within the electronic fuel injection (EFI) system or an electrical part that aids in starting the scooter. You may need to refer to your scooter's manual to find its exact location.
Once you have located the choke or EFI component, carefully access the wiring connected to it. You may need to remove a panel or component to reach the wires. Then, disconnect the wiring harness from the choke. With your multimeter probes, touch each terminal of the electric choke. The multimeter will display a resistance value. This value should correspond to the specifications outlined in your scooter's service manual. A significant deviation from this value may indicate a problem.
Now, switch your multimeter to the continuity setting and place the probes on each terminal of the choke. A continuous circuit will typically produce a beeping noise or a specific continuity indication on your multimeter. If the resistance or continuity tests yield results outside the manufacturer’s specifications, it could suggest that the choke or starting component is faulty and may need to be replaced.
Electric Seats in Camry SE: Exploring the Feature
You may want to see also
Explore related products
Evaluate the results
After testing the choke's resistance and continuity, the next step is to evaluate the results. If the resistance or continuity tests show results outside the manufacturer's specifications, it suggests that the choke or starting component is faulty and may need to be replaced. The choke typically fails in two ways: either the piston does not retract (choke remains active) or it does not extend (choke remains inactive).
If the choke is faulty, the scooter's performance may be affected. Improper choke function can lead to hard starting, poor fuel economy, and decreased performance. Therefore, it is crucial to ensure the choke is functioning correctly to maintain the scooter's efficiency and reliability.
When evaluating the results, it is important to consider the specific make and model of the scooter, as the process can vary. Consulting the scooter's manual and specifications is essential to compare the test results with the manufacturer's guidelines. If in doubt, it is advisable to seek assistance from a professional technician to ensure accurate evaluation and necessary repairs.
Additionally, regular testing and maintenance of the electric choke system are vital to prevent startup issues and ensure a smooth riding experience. By mastering the skill of testing and troubleshooting the electric choke, scooter enthusiasts can perform their own maintenance and optimise the performance of their electric scooters.
