Testing an electric temperature gauge sender is important to ensure the accuracy of temperature readings. Electric temperature gauges, such as those found in automobiles, use a sender to transmit signals that correspond to varying levels of resistance to ground. To test the sender, one must first warm the engine to a stable temperature and use an ohm meter to measure resistance. By comparing the gauge reading with the measured resistance, one can determine if the sender is functioning correctly. For example, a gauge reading of 210 degrees with a measured resistance of 123 ohms indicates an accurate temperature gauge. Understanding the relationship between resistance values and temperature readings is crucial for interpreting the results of electric temperature gauge sender tests.
| Characteristics | Values |
|---|---|
| How to check the accuracy of a short sweep temperature gauge | This gauge typically has 3 terminals on the rear of the gauge (not including the light connections). It sends a signal out to the sender from the “S” terminal, and it is the sender's job to vary this signal's resistance to ground. |
| How to check the accuracy of a full sweep electric temperature gauge | This gauge would typically have a 10-pin, plug-in connector on the rear of the gauge with (depending on model #) 4 or 5 wires, and a 2-wire/2-pin plug-in connector. The gauge supplies a 5v signal on the gray wire to the sender. |
| How to test the sender | Warm the engine up to a stable temperature. Have an ohm meter ready, as well as the tool(s) needed to remove the wire off the sender. With the engine running/idling, note what the gauge is reading, and write this down. With the engine still idling, remove the wire off of the sender, then hook the positive wire of your ohm meter to the sender where the sender wire was. Now hook the negative wire of your ohm meter to the ground. What resistance do you measure? |
| What to do if your gauge shows higher than normal | If the sender tests where it should, then run a new dedicated ground from the threaded portion of the gauge ground terminal to an engine ground and see if the problem persists. |
| How to add a mechanical gauge | You may be able to add a setup by tapping a hole somewhere for the extra probe or install a sender fitting adapter inline with your radiator hose. |
Explore related products
What You'll Learn
Warm the engine to a stable temperature
Warming the engine to a stable temperature is an important step in testing the electric temperature gauge sender. This process ensures that the engine is in a consistent state for accurate testing and diagnosis. Here's a step-by-step guide to warming the engine to a stable temperature:
- Start the engine and let it idle for a few minutes: Allow the engine to run at a steady, low RPM. This step ensures that the engine's temperature stabilizes and reaches its normal operating range.
- Monitor the temperature gauge: Keep an eye on the temperature gauge during warm-up. You can observe the gauge needle moving as the engine temperature increases. This indication assures that the gauge is responsive to temperature changes.
- Achieve a stable temperature: Wait until the temperature gauge needle reaches a steady position. This position typically indicates that the engine has reached its operating temperature. The specific temperature range may vary depending on the vehicle and engine type.
- Maintain idle for a brief period: Once the engine has reached its operating temperature, let it idle for a few more minutes. This step ensures that the temperature stabilizes and doesn't fluctuate significantly.
- Note the temperature reading: Pay attention to the temperature reading when the engine is at a stable temperature. This reading will serve as a reference point for further testing and comparison.
- Consistency is key: To ensure accuracy, it's recommended to repeat the warm-up process a few times. Consistency in the temperature readings indicates that the engine is maintaining a stable temperature.
By following these steps, you can effectively warm the engine to a stable temperature, providing a solid foundation for further testing and diagnostics of the electric temperature gauge sender. Remember to exercise caution when working with a running engine, and ensure that the testing environment is well-ventilated.
Electricity Costs: Month-to-Month Comparison and Insights
You may want to see also
Explore related products
Prepare an ohm meter and tools to remove the wire from the sender
To prepare to test an electric temperature gauge sender, you will need an ohm meter and the tools required to remove the wire from the sender. The ohm meter will be used to measure the resistance of the sender, which will help determine if the sender is functioning correctly.
Firstly, ensure you have the correct type of ohm meter and that it is calibrated and functioning properly. The ohm meter should be able to measure the range of resistance values that you expect to encounter during the test. For automotive applications, an ohm meter capable of measuring a wide range of resistance values will be suitable.
Next, gather the tools necessary to remove the wire from the sender. This may include screwdrivers, wrenches, or other tools specific to your vehicle or application. Ensure that you have the appropriate size and type of tools to safely and effectively remove the wire without causing any damage.
It is important to have a basic understanding of electrical safety before proceeding. Work with a partner or assistant if possible, and always be cautious when working with electrical systems. Ensure the vehicle's electrical system is turned off before beginning any work, and always follow the vehicle's specific safety procedures.
Once you have gathered the necessary tools and equipment, you can proceed to the next step, which involves warming up the engine to a stable temperature and performing the tests according to the specific procedures for your type of temperature gauge.
Remember to take accurate measurements, adjust the range on your ohm meter as needed, and compare your results to the expected values to determine if the sender is functioning correctly.
Electric Oven Baking: Tips and Tricks for Beginners
You may want to see also
Explore related products
Note the gauge reading with the engine idling
To test an electric temperature gauge, you will need to warm up the engine to a stable temperature. Prepare an ohm meter and the tools required to remove the wire off the sender.
With the engine idling, note the gauge reading and write it down. It is important to record the exact reading as it will be used for comparison later on.
The sender unit on the gauge relies on two connections: the black clip, where the sensor threads into the engine, and the red clip, which connects to the back of the gauge. The black clip substitutes for the chassis/common ground in the test setup.
Now, with the engine still idling, carefully remove the wire from the sender. Then, hook up the positive wire of your ohm meter to the sender where the sender wire was previously connected. Connect the negative wire of the ohm meter to the ground.
By comparing the resistance measured by the ohm meter to the expected resistance values, you can determine if the gauge is reading accurately. For example, if the gauge reads 210 degrees and you measure 123 ohms, the gauge is functioning correctly.
Using La Germania Electric Oven: A Step-by-Step Guide
You may want to see also
Explore related products
Remove the wire from the sender and connect the ohm meter
To test an electric temperature gauge, you'll need to check the accuracy of the gauge and the sender. Start by warming up the engine to a stable temperature. Prepare an ohm meter and the tools required to remove the wire from the sender. Keep the engine running or idling, and note down the gauge reading.
Now, carefully remove the wire from the sender. Then, hook up the positive wire of the ohm meter to the sender where the sender wire was previously connected. Connect the negative wire of the ohm meter to the ground. Take the resistance measurement.
For example, if the gauge read 210 degrees and you measured 123 ohms, the gauge is functioning correctly. If the gauge indicated a different temperature, the sender may be faulty. The sender relies on two connections: a black clip where the sensor threads into the engine and a red clip that connects to the back of the gauge.
It's important to remember that the resistor on the back of the gauge and the sender have small tolerances, so readings may vary slightly. For instance, a resistance of 415 ohms corresponds to 100 degrees, while 50 ohms reads as 250 degrees, and 79 ohms indicates a general reading of 210 degrees.
Switching to an Electric Thermostat: DIY Guide
You may want to see also
Explore related products
Measure the resistance
To test an electric temperature gauge, you will need to measure the resistance. This process involves checking the accuracy of a short sweep temperature gauge, which typically has three terminals on the rear (excluding light connections). The "S" terminal sends a signal to the sender, and the sender must vary this signal's resistance to the ground for the gauge to operate. The sender mounting threads serve as the ground path for the sender.
To measure the resistance, you can follow these steps:
- Warm up the engine to a stable temperature.
- Prepare an ohm meter and the tools required to remove the wire from the sender.
- Observe and record the gauge reading while the engine is idling.
- With the engine still idling, carefully remove the wire from the sender.
- Connect the positive wire of the ohm meter to the sender where the sender wire was previously attached.
- Connect the negative wire of the ohm meter to the ground.
- Measure the resistance value.
By comparing the measured resistance with expected values, you can determine if the gauge is reading accurately. For example, a reading of 123 ohms corresponds to 210 degrees Fahrenheit. Additionally, 415 ohms represent 100 degrees, 50 ohms represent 250 degrees, and 79 ohms indicate approximately 210 degrees.
It is important to note that the resistor on the gauge and sender has a small tolerance, so readings may vary slightly. If your gauge shows higher than normal readings, and the sender tests accurately, you can try running a new dedicated ground from the threaded portion of the gauge ground terminal to an engine ground to address the issue.
JPMorgan's Targeted Move: General Electric's Transformation
You may want to see also
Frequently asked questions
Warm up the engine and have an ohm meter ready. Note the gauge reading, then remove the wire from the sender and attach the ohm meter to it and ground. Compare the resistance measured to the expected values.
A reading of 123 ohms is equivalent to 210 degrees. 415 ohms will read 100 degrees, 50 ohms will read 250 degrees, and 79 ohms will give a general reading of 210 degrees.
If the sender tests fine, run a new dedicated ground from the threaded portion of the gauge ground terminal to an engine ground.
This gauge has 3 terminals at the rear (excluding light connections) and uses a single terminal sender. It sends a signal to the sender, which varies the signal's resistance to ground.

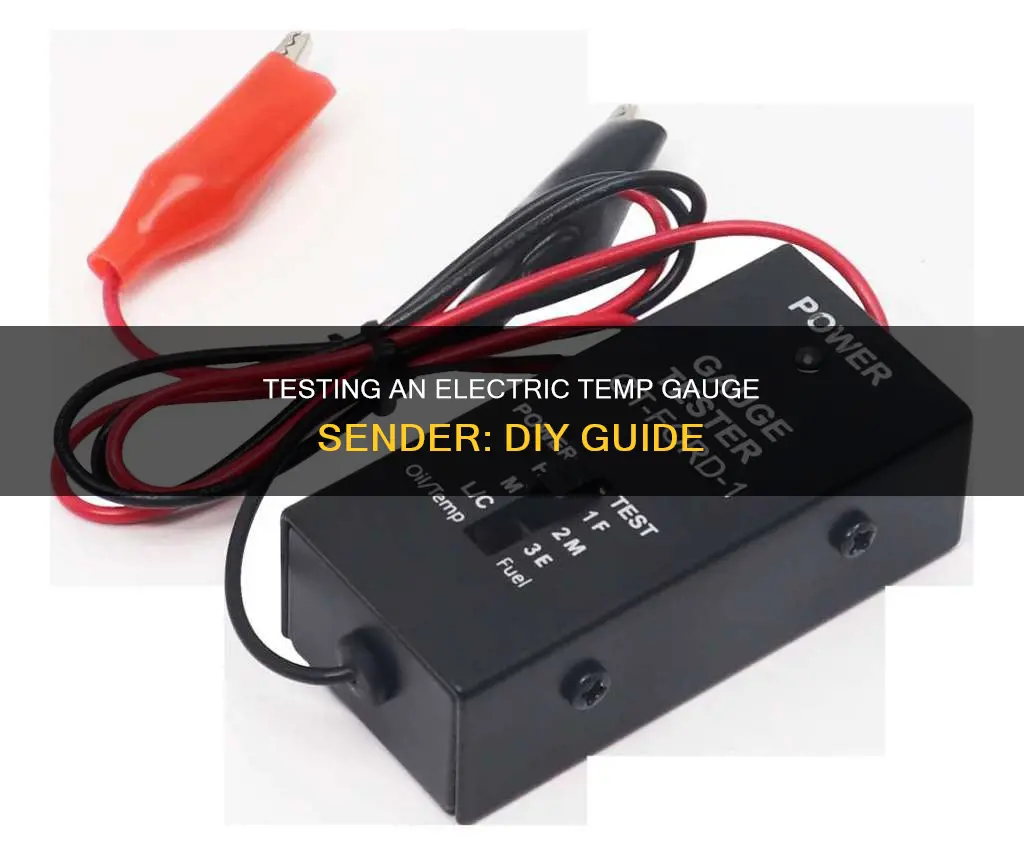

You will need an ohm meter and the tools to remove the wire from the sender. Many automotive electrical repair shops have a gauge tester, which is a switchboard with different resistance values.
