Tracing a live electrical circuit can be a complex task, especially in older buildings with unclear wiring paths. To start, you'll need to locate the closest connection to the breaker or fuse panel on the same circuit as the line or phase wire. Then, connect the red and green test leads to the transmitter, with the red lead connected to the hot wire and the green lead to a separate ground. Advanced wire tracers can also utilize a current clamp on low impedance closed circuits. When using a transmitter, be aware of potential signal cancellation from connecting adjacent wires on the same circuit. To avoid incorrect results, always consider grounding issues and select the appropriate signal mode (High or Low) based on your application. Safety should be a priority when working with live circuits, so ensure your tool provides clear indications of energized or de-energized signals and warns of over-voltage.
| Characteristics | Values |
|---|---|
| Locating electrical wires | Easy during construction, hard in a finished structure |
| Tools | Wire tracer, test leads, current clamp |
| Connection | Connect red and green test leads to the transmitter |
| Red test lead | Connect to the hot wire on the load side of the circuit |
| Green test lead | Connect to a separate ground, such as a metal water pipe or grounded metal structure of the building |
| Signal cables and de-energized wires | Temporarily ground the circuit on both ends |
| Transmitter | Should indicate whether the signal is energized or de-energized |
| Safety | Should warn or alarm if it detects an energized over-voltage signal |
| Signal modes | High mode for most applications, Low mode for precise tracing |
| Loop mode | Used for tracing de-energized wires in a closed circuit |
| Grounding | Be aware of grounding issues to avoid incorrect results |
| Electrical audit | Map out every plug to its circuit to know the load and circuit for each |
Explore related products
What You'll Learn

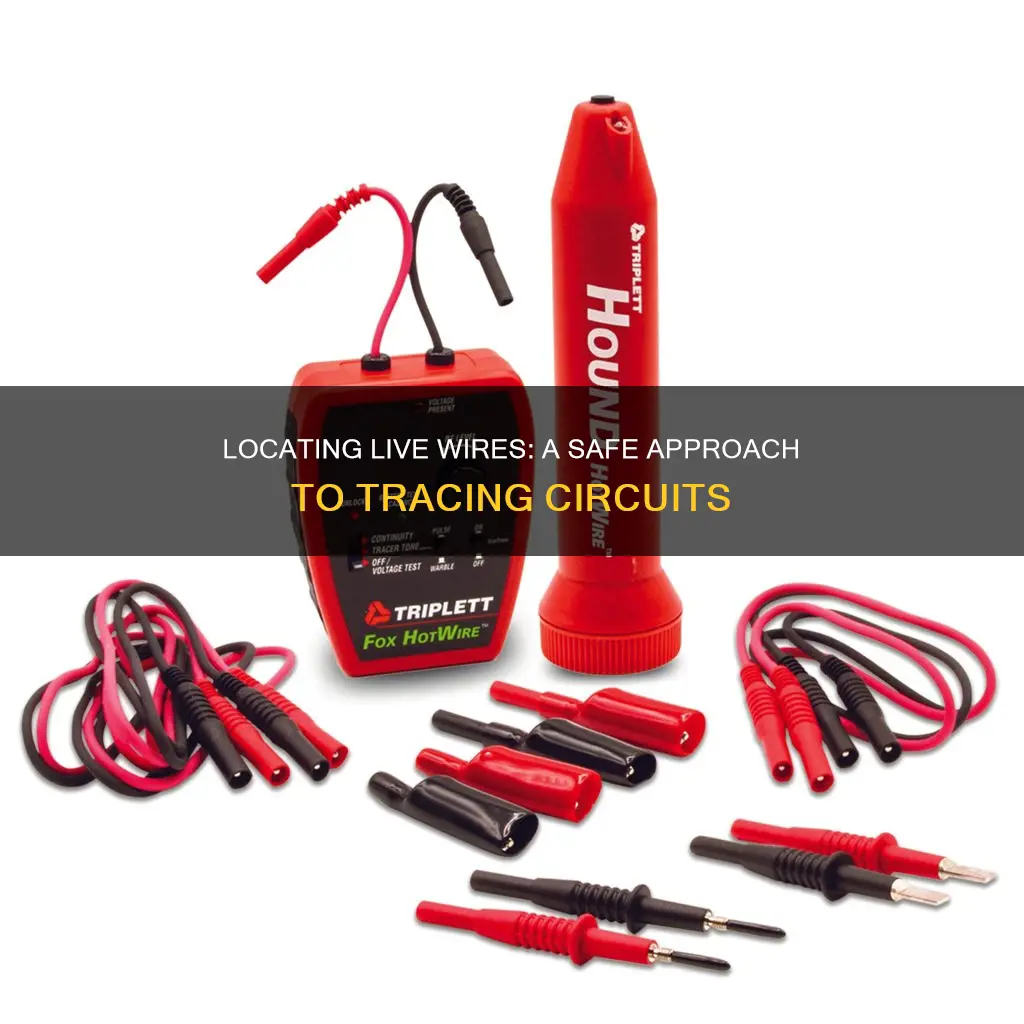

Using a wire tracer
Before using a wire tracer, it is important to determine whether the wire you are tracing is live. This can be done using a voltage tester. If the wire is live, it is recommended to de-energize the circuit before proceeding. De-energizing the circuit can be done by turning off the power at the breaker panel or disconnecting the power source.
To use a wire tracer, you will need to connect the transmitter to the circuit or wire being traced. This can be done through a test lead or a current clamp. For most applications, a direct test lead connection will provide the best results. Connect the red test lead to the hot wire on the load side of the circuit, and the green test lead to a separate ground. Once the connections are secure, turn on the transmitter.
An advanced wire tracer will automatically select an energized or de-energized mode based on the voltage present. It will also indicate whether the signal is energized or de-energized, helping to ensure your safety. If you are using a wireless circuit tracer, the transmitter will send the signal wirelessly, and the receiver will detect and guide you towards the wire being traced.
After setting up the transmitter, select the mode you want to use. Most receivers have several modes, including scan, precise signal detection, breaker identification, and non-contact voltage detection. Move the receiver along the wall to find the highest signal level, which indicates the presence of the wire. Keep the receiver at least 3 feet away from the transmitter to minimize signal interference.
Once you have successfully traced the wire, you can restore power to the circuit. Double-check your work to ensure all connections are secure and the electrical system is functioning properly.
Testing an EGC Valve: Step-by-Step Guide
You may want to see also
Explore related products
Connecting the transmitter
Choosing the Right Connection Method
The first step is to decide how you will connect the transmitter to the circuit. There are two common methods: using a test lead or utilising a current clamp. For most applications, a direct test lead connection will yield better results. This involves connecting the red and green test leads to the transmitter. However, if a direct connection to a bare conductor is not available, a current clamp can be used on low impedance closed circuits.
Connecting the Red Test Lead
Connect the red test lead to the hot wire on the load side of the circuit. This connection remains the same, regardless of whether the circuit is energised or de-energised. Ensure that you are taking the necessary safety precautions when working with live circuits.
Connecting the Green Test Lead
The connection of the green test lead depends on the type of circuit you are tracing. For accurate results, connect the green test lead to a separate ground. This could be a metal water pipe, the grounded metal structure of the building, or a grounded stake. Alternatively, if you are working with a specific connection on a different branch of the same circuit, connect the green test lead to the neutral wire of that connection.
Avoiding Signal Cancellation
It's important to avoid signal cancellation, which occurs when the transmitter is connected to two adjacent wires on the same circuit. To prevent this, always connect the green test lead to a separate ground, as mentioned earlier. This ensures that the signal travels in the intended direction and is not cancelled out.
Finalising the Setup
Once you have made the necessary connections, it's time to turn on the transmitter. An advanced wire tracer will automatically select energised or de-energised mode based on the voltage present. Always prioritise safety and ensure that your tool has clear indicators to confirm the signal type and warn you of any potential hazards, such as an energised over-voltage signal.
Setting Up Electricity for Your Yurt: A Step-by-Step Guide
You may want to see also
Explore related products
Using a current clamp
Tracing live electrical circuits can be tricky and potentially dangerous, but with the right tools, it can be done safely and effectively. One such tool is a current clamp, which can be used in conjunction with a wire tracer or multimeter to help identify live wires and trace their paths.
To use a current clamp effectively, follow these steps:
First, ensure you have the right equipment. You will need a wire tracer or multimeter with a current clamp accessory, as well as any necessary adapters and connectors. Some advanced wire tracers have built-in current clamps, while others require separate clamps to be attached. It is also important to wear the appropriate safety gear, including insulated gloves and eye protection, when working with live circuits.
Next, prepare the wire tracer or multimeter by connecting the test leads to the transmitter. If using a separate current clamp, attach it to the transmitter via the provided cables. Refer to the equipment's user manual for specific instructions on how to properly connect the current clamp to the transmitter.
Once the equipment is set up, it's time to locate the circuit you wish to trace. Identify the closest connection to the breaker or fuse panel that is on the same circuit as the wire you want to trace. This is usually indicated by being connected to the same RCD as the line or phase wire.
Now, carefully connect the test leads to the circuit. Connect the red test lead to the hot wire (also known as the live wire) on the load side of the circuit. Then, connect the green test lead to the neutral wire of the identified connection. If you are unable to access a bare conductor, you can use the current clamp on low-impedance closed circuits. However, keep in mind that the signal strength may be weaker than with a direct connection.
With the connections made, you are now ready to activate the transmitter and begin tracing. Ensure that the transmitter is set to the appropriate mode, such as High or Loop, depending on the specific model of your wire tracer. Be mindful of any grounding issues that may affect the accuracy of your readings. Move the probe of the receiver along the wall, and listen for a beeping sound or observe for a signal on the wire tracer's display to identify the path of the live electrical circuit.
By following these steps and using a current clamp in conjunction with a wire tracer or multimeter, you can safely and effectively trace live electrical circuits. Always prioritize safety and ensure you are confident in your abilities before working with live electricity. If you have any doubts or concerns, it is best to consult a licensed electrician.
Electrical Wiring Depth: How Deep Should You Bury Cables?
You may want to see also
Explore related products
Setting the transmitter mode
Connect the Transmitter
Firstly, you need to establish a connection between the transmitter and the circuit or wire you intend to trace. This can be done using a test lead or a current clamp. Typically, a direct test lead connection is recommended as it yields more accurate results. Connect the red and green test leads to the transmitter. The red lead should be attached to the hot wire on the load side of the circuit, regardless of whether it is energised or de-energised.
Grounding the Circuit
To ensure accurate results, it is imperative to ground the circuit properly. Connect the green test lead to a separate ground, such as a metal water pipe, a grounded metal structure, or a grounded stake. This step helps to avoid inaccurate signals due to signal coupling. It is important to note that connecting the transmitter to two adjacent wires on the same circuit can result in signal cancellation.
Selecting the Appropriate Mode
Transmitters often have multiple signal modes to choose from. The "High" mode is commonly used for most applications, providing a strong signal. However, if precise tracing is required, the "Low" mode is more suitable as it generates a lower signal that reduces coupling to nearby wires and objects. Some transmitters also offer a Loop mode, which is specifically designed for tracing de-energized wires in a closed circuit.
Adjusting Sensitivity
To optimise signal detection, adjust the sensitivity settings on your transmitter. Aim to maintain the signal strength at about 75% of the scale, or as recommended by the manufacturer. If the signal remains too high even at the minimum setting, switching to "Low" mode can help mitigate this issue.
Safety Considerations
When working with live electrical circuits, safety must be a top priority. Always wear insulated gloves and safety glasses to protect yourself from potential electrical hazards. Additionally, refer to the instruction manual provided by the manufacturer to familiarise yourself with the specific safety precautions and guidelines for your equipment.
By following these steps and staying vigilant about safety, you can effectively set the transmitter mode and proceed with tracing a live electrical circuit.
The Best Electric Knife Technique for Filleting Bluegill
You may want to see also
Explore related products
Avoiding signal cancellation
Tracing live electrical circuits is a crucial skill for electricians, homeowners, and DIY enthusiasts alike. It is essential for identifying faulty wires, mapping out circuits, and planning renovations. While this process can be complex, there are several tools and techniques available to help you accurately trace live electrical circuits while avoiding signal cancellation.
A circuit tracer, also known as a wire tracer or toner, is a valuable tool for locating and tracing wires and cables within a system. These devices operate on the principle of electromagnetic induction, detecting and tracing the electromagnetic field generated by an electric current flowing through a wire. When using a circuit tracer, it is important to connect the green test lead to a separate ground to avoid signal cancellation. Suitable grounds include a metal water pipe, a grounded metal structure of the building, a grounded screwdriver, or a grounded stake. Connecting the green test lead to the same circuit as the hot wire can result in signal cancellation, producing inaccurate results.
Additionally, when using a transmitter, avoid connecting it to two adjacent wires on the same circuit, such as the hot and neutral wires on a Romex cable. This can also lead to signal cancellation, as the signal will travel in one direction through one wire and then return through the other. Instead, ensure that the transmitter is properly connected to a single wire and activated before beginning your trace.
To enhance signal strength, consider using a current clamp, which can be attached to the test leads of the transmitter and then clamped around the wire being traced. For signal cables and de-energized wires, temporarily grounding the circuit on both ends can also aid in tracing.
By following these guidelines and utilizing appropriate tools, such as circuit tracers and current clamps, you can effectively avoid signal cancellation when tracing live electrical circuits.
Understanding Your Computer's Electricity Consumption
You may want to see also
Frequently asked questions
The first step is connecting the transmitter through a test lead or current clamp.
Connect the red and green test leads to the transmitter.
The last step is to connect the green test lead to a separate ground, which can be a metal water pipe, the grounded metal structure of the building, or a grounded stake.
An advanced wire tracer should have a clear indicator of whether the signal is energized or de-energized. It should also give a warning or alarm if it detects an energized over-voltage signal, indicating that you must immediately disconnect from the circuit.
