Powering The Future: Unveiling The Components Of Hybrid Electric Vehicles

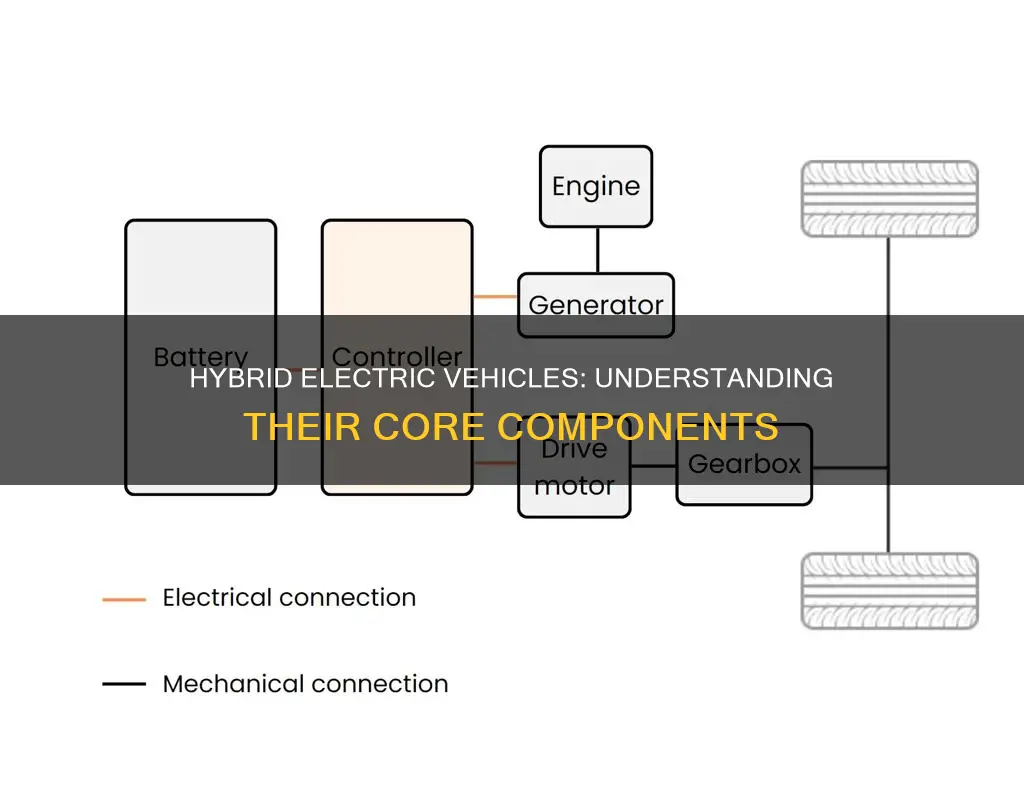

Hybrid electric vehicles (HEVs) are an innovative blend of traditional internal combustion engines and electric motors, offering a more sustainable and efficient mode of transportation. These vehicles combine two or more power sources, typically an electric motor and a conventional engine, to provide propulsion. The key components of HEVs include an electric motor, a battery pack, a conventional engine, a power control unit, and an energy recovery system. The electric motor provides immediate torque for acceleration, while the battery pack stores energy for use when needed. The conventional engine, often smaller and more fuel-efficient than traditional engines, acts as a backup and generator, recharging the battery pack. The power control unit manages the flow of energy between the battery, motor, and engine, ensuring optimal performance and efficiency. Additionally, an energy recovery system captures and stores energy that would otherwise be lost during braking, further enhancing the vehicle's efficiency.

Engine: Combustion engine, often smaller, works with electric motor

A hybrid electric vehicle (HEV) is an innovative automobile design that combines two or more power sources to enhance efficiency and performance. One of the key components of this technology is the combustion engine, which plays a crucial role in the vehicle's operation.

The combustion engine in a hybrid vehicle is typically smaller compared to its conventional counterparts. This is a strategic design choice to optimize space and weight, allowing for better overall performance. These engines are designed to work in conjunction with an electric motor, creating a powerful and efficient hybrid system. When the vehicle is in motion, the combustion engine and electric motor work together to provide the necessary power. The combustion engine generates power through the combustion of fuel, which is then used to drive the vehicle's wheels. This process is highly efficient, ensuring that the vehicle can travel long distances with minimal fuel consumption.

During certain driving conditions, the combustion engine may not be the primary power source. For example, when the vehicle is idling or moving at low speeds, the electric motor takes over. This is where the electric motor's role becomes significant. It provides instant torque, ensuring smooth acceleration and efficient power delivery. The electric motor is designed to work in harmony with the combustion engine, providing a seamless driving experience.

The collaboration between the combustion engine and electric motor is a key feature of HEVs. The electric motor assists the combustion engine during high-load conditions, such as uphill driving or rapid acceleration. By sharing the workload, the hybrid system ensures that the vehicle can maintain its performance while being environmentally friendly. This synergy between the two power sources is a hallmark of hybrid technology.

In summary, the combustion engine in a hybrid electric vehicle is a smaller, efficient power source that works in tandem with an electric motor. This combination allows for improved performance, reduced fuel consumption, and a more environmentally friendly driving experience. The design and functionality of these engines are a testament to the advancements in automotive engineering, offering a promising future for sustainable transportation.

Battery: Stores energy, typically lithium-ion, powers electric motor

The battery is a critical component of a hybrid electric vehicle (HEV), serving as the primary energy storage system. It is designed to store electrical energy, which is then utilized to power the electric motor and drive the vehicle. Typically, HEV batteries are lithium-ion batteries, a technology widely recognized for its high energy density and efficiency. These batteries are responsible for capturing and storing the energy generated during regenerative braking, as well as providing the necessary power to the electric motor during acceleration and other demanding driving conditions.

Lithium-ion batteries are preferred in HEVs due to their ability to provide high power output while maintaining a relatively small and lightweight design. This is crucial for hybrid vehicles, as it allows for efficient energy management and contributes to the overall performance and driving experience. The battery pack is usually composed of multiple individual cells connected in series and parallel configurations to achieve the required voltage and capacity. Each cell has a positive and negative electrode, with an electrolyte in between, facilitating the movement of ions during the charging and discharging processes.

During operation, the battery in an HEV is constantly charged and discharged, ensuring a continuous supply of energy to the electric motor. When the vehicle is in hybrid mode, the internal combustion engine (ICE) and electric motor work together to optimize fuel efficiency. The battery stores excess energy generated by the ICE during deceleration and regenerative braking, which can then be reused to power the vehicle when needed. This process, known as regenerative braking, is a key feature of HEVs, allowing for improved energy efficiency and reduced fuel consumption.

The battery's role in an HEV extends beyond energy storage. It also acts as a buffer, smoothing out power delivery to the electric motor, ensuring a consistent and stable output. This is particularly important during rapid acceleration or when the electric motor alone is not sufficient to meet the vehicle's power demands. By storing and releasing energy efficiently, the battery contributes to the overall performance and drivability of the hybrid vehicle.

In summary, the battery in a hybrid electric vehicle is a sophisticated energy storage system, typically lithium-ion, that powers the electric motor and supports the vehicle's overall functionality. Its ability to store and release energy efficiently is fundamental to the hybrid drivetrain's success, offering improved fuel economy and a more environmentally friendly driving experience. Understanding the battery's role and its integration with other vehicle components is essential to appreciating the technology behind modern hybrid vehicles.

Electric Motor: Converts electrical energy into mechanical power

The electric motor is a crucial component of hybrid electric vehicles (HEVs), playing a pivotal role in converting electrical energy into mechanical power. This process is fundamental to the operation of HEVs, which combine a traditional internal combustion engine with one or more electric motors to achieve improved fuel efficiency and reduced emissions.

In the context of HEVs, electric motors are designed to provide power to the vehicle's wheels, offering a seamless and efficient driving experience. When the driver engages the accelerator, the electric motor springs into action, drawing power from the vehicle's battery pack. This power is then utilized to turn the wheels, propelling the vehicle forward. The motor's efficiency is a key factor in the overall performance of the HEV, as it directly influences the vehicle's ability to accelerate and maintain speed.

The design and functionality of electric motors in HEVs are tailored to meet specific requirements. These motors are typically smaller and more compact compared to those in conventional vehicles, allowing for efficient placement within the vehicle's structure. They are often integrated into the transmission system, where they can directly drive the wheels or assist the internal combustion engine. This integration ensures a smooth power delivery and contributes to the overall efficiency of the vehicle.

One of the key advantages of electric motors in HEVs is their ability to provide instant torque. This feature is particularly beneficial during acceleration, as it enables the vehicle to respond quickly and smoothly to the driver's input. The electric motor's high torque output at low speeds allows for efficient and rapid acceleration, enhancing the overall driving experience.

Furthermore, electric motors in HEVs are designed to operate in conjunction with the internal combustion engine. During certain driving conditions, the electric motor can act as a generator, converting mechanical power back into electrical energy. This process helps recharge the battery pack, ensuring that the electric motor has the necessary power to operate when needed. The seamless integration of the electric motor with the internal combustion engine contributes to the overall efficiency and performance of the hybrid system.

Power Electronics: Controls energy flow between battery and motor

Power electronics play a crucial role in hybrid electric vehicles (HEVs) by managing the complex interplay between the battery and the electric motor, ensuring efficient energy transfer and optimal performance. These components are the brain behind the vehicle's ability to switch seamlessly between electric and conventional power sources, providing an eco-friendly and smooth driving experience.

At the heart of this system are power electronic devices, such as insulated-gate bipolar transistors (IGBTs) and metal-oxide-semiconductor field-effect transistors (MOSFETs). These transistors act as electronic switches, enabling precise control over the flow of electrical energy. When the vehicle is in electric mode, the power electronics module (PEM) regulates the battery's output, converting direct current (DC) to alternating current (AC) to match the motor's requirements. This process ensures that the electric motor receives the appropriate voltage and frequency, allowing it to operate efficiently and deliver the desired torque.

During regenerative braking, the power electronics come into play again. When the driver applies the brakes, the motor acts as a generator, converting kinetic energy back into electrical energy. The PEM efficiently captures this energy and stores it in the battery, maximizing energy recovery. This feature not only improves overall efficiency but also extends the vehicle's range by utilizing the kinetic energy that would otherwise be wasted.

The control strategy of the power electronics is sophisticated, involving various algorithms and sensors. These systems monitor the vehicle's speed, acceleration, and battery state-of-charge to make real-time decisions. For instance, when the battery is low, the PEM can adjust the power distribution to prioritize the motor's operation, ensuring the vehicle continues to run smoothly. This dynamic control enables HEVs to optimize energy usage, providing a seamless driving experience while maintaining the environmental benefits of electric power.

In summary, power electronics are essential for the efficient operation of HEVs, enabling the management of energy flow between the battery and the electric motor. Through the use of advanced transistors and control algorithms, these systems ensure that the vehicle can switch between power sources effortlessly, providing a smooth and eco-friendly driving experience while maximizing energy efficiency. Understanding and optimizing these power electronics components are key to further advancements in hybrid vehicle technology.

Regenerative Braking: Recovers energy during braking, extends range

Regenerative braking is a key feature of hybrid electric vehicles (HEVs) that significantly contributes to their efficiency and range. When a conventional vehicle brakes, kinetic energy is converted into heat and dissipated through the brakes, resulting in a loss of power. However, in an HEV, this process is reversed, and the energy that would otherwise be wasted is captured and stored for later use.

The regenerative braking system operates by converting the vehicle's kinetic energy into electrical energy when the brakes are applied. This is achieved through the interaction of several components. Firstly, the electric motor, which is also used to drive the wheels, acts as a generator during braking. When the driver applies the brakes, the motor slows down, and the energy is fed back into the vehicle's battery pack. This process is often referred to as 'regenerative braking' because it regenerates or replenishes the battery's power.

The system's efficiency is further enhanced by the vehicle's control unit, which manages the flow of energy. It determines when and how much energy should be directed back to the battery, ensuring optimal performance and safety. This control is crucial in maintaining the balance between braking efficiency and the overall driving experience, allowing for smooth and responsive braking without compromising the vehicle's dynamics.

One of the primary benefits of regenerative braking is its ability to extend the vehicle's range, especially in city driving conditions where frequent stops and starts are common. By capturing and reusing energy that would otherwise be lost, the system reduces the strain on the internal combustion engine, resulting in improved fuel efficiency. This is particularly advantageous for HEVs, as it allows them to travel longer distances on electric power alone before the gasoline engine needs to engage, thus reducing fuel consumption and emissions.

In summary, regenerative braking is a sophisticated mechanism that plays a vital role in the performance and sustainability of hybrid electric vehicles. By harnessing the energy typically lost during braking and converting it into usable power, HEVs can achieve enhanced efficiency, improved range, and a more environmentally friendly driving experience. This technology is a prime example of how innovative engineering can contribute to the advancement of sustainable transportation.
