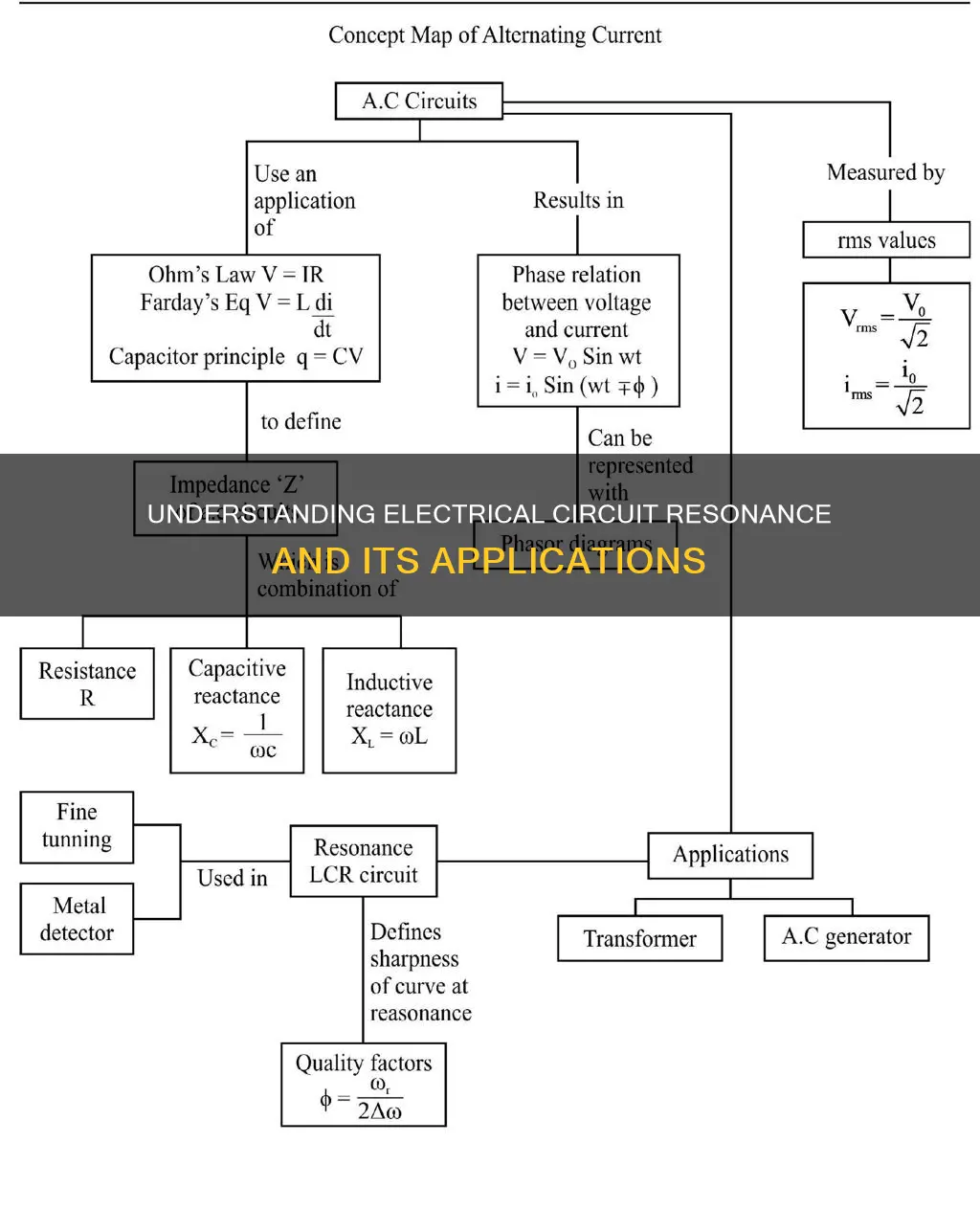

Electrical resonance is a phenomenon that occurs in electrical circuits when the impedances or admittances of circuit elements cancel each other out at a specific frequency, resulting in a maximum oscillatory response. This condition leads to an increase in current flow and voltage amplitude, with the circuit becoming more responsive to the applied AC frequency. The alignment of reactive elements, such as inductors and capacitors, plays a crucial role in achieving resonance. Inductors and capacitors are energy-storing elements that can either work in parallel or in series to maintain the same resonant current and prevent energy waste. The presence of resistors in RLC circuits introduces damping, causing any induced oscillations to decay over time unless continuously driven. Electrical resonance is widely used in wireless (radio) transmission and is the driving concept behind TV and radio receivers, allowing users to select desired frequencies.
| Characteristics | Values |
|---|---|
| Definition | A condition that occurs when the inductive reactance and capacitive reactance in an AC circuit cancel each other out. |
| Occurrence | In an electric circuit at a particular resonant frequency. |
| Result | The net reactance becomes zero, leading to an increase in current flow and voltage amplitude. |
| Circuit Elements | A circuit consisting of a resistor, an inductor, and a capacitor, connected in series or in parallel. |
| Circuit Type | Second-order circuit, meaning that any voltage or current in the circuit can be described by a second-order differential equation in circuit analysis. |
| Impedance | The total opposition that the circuit presents to the flow of alternating current. |
| Applications | Widely used in wireless (radio) transmission for both transmission and reception. |
| Energy Efficiency | Parallel resonance circuits can be used to prevent the waste of electrical energy. |
Explore related products
Impedance and Admittance
Electrical resonance occurs in an electric circuit at a particular resonant frequency when the impedances or admittances of circuit elements cancel each other out. This happens when the impedance between the input and output of the circuit is almost zero and the transfer function is close to one.
Impedance is the total opposition that the circuit presents to the flow of alternating current. It is a combination of resistance and reactance due to the presence of resistive, capacitive, and inductive elements within the circuit. The SI unit of impedance is the ohm (Ω) and its symbol is usually Z. In a series RLC circuit, the impedance is given by the equation V = IZ, where V is the voltage, I is the current, and Z is the impedance. At series resonance, the impedance Z is equal to zero, and the difference between the values of XL (inductive reactance) and XC (capacitive reactance) is zero. This means that the two reactances cancel each other out, resulting in a short circuit. The only opposition to the current flow in a series resonance circuit is the resistance, R, which is the maximum value of the current that can flow through the circuit.
Admittance is the inverse of impedance and is defined as the ease with which a circuit allows current to flow. It is a complex number that represents the ratio of current to voltage. The SI unit of admittance is the siemens (S) and its symbol is usually Y. In a parallel RLC circuit, resonance occurs when the imaginary admittance term is zero. This is because, at resonance, the admittance of the circuit is at its maximum, which can lead to a dangerously high current flowing through the circuit.
In an ideal LC circuit with no resistance, the impedance is infinite, and the admittance is zero. However, in actual circuits, there is always some resistance, and these circuits are better represented by an RLC circuit.
