If you've ever wondered what those numbers on your electrical panel mean, you're not alone. The numbers on your electrical panel, often referred to as the breaker box, indicate the amount of power, measured in amps, that can pass through a circuit before it trips. For example, a breaker labelled with 15 will allow 15 amps to pass through but will shut off the circuit if it senses 16 amps. This safety measure is designed to protect the wiring in your walls, as larger wires can handle more power than smaller ones. These numbers are important to understand, especially if you're planning to add new loads to your electrical panel or upgrade your electrical system.
Explore related products
What You'll Learn
The numbers indicate how much power is let through the circuit
The numbers on your electricity panel indicate the amount of power in Amps that is allowed to pass through the circuit. For example, a breaker labelled with a '15' will allow 15 Amps through, but will shut off the circuit if it senses 16 Amps. This is a safety measure to protect the wiring in your walls. A bigger wire can handle more power running through it than a smaller one.

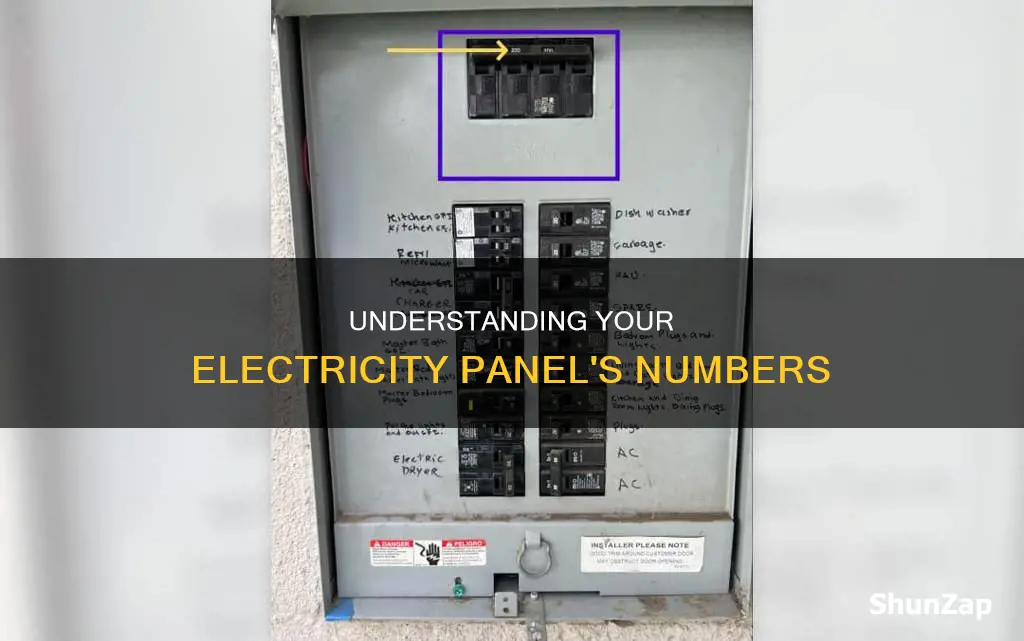

The main breaker or fuse is usually the largest switch inside your electrical panel and will have its capacity written on or near it. This number indicates your panel size in Amps. This is typically the easiest place to find your panel size. A 200 Amp electrical panel is common in newer homes.
If you want to know how much power is being used by a particular circuit, you can check how many things are running on it at the same time. If a circuit is trying to power more things than it should, you can adjust where you plug things in or stagger when you run appliances. You can even have an electrician add new circuits to your system if needed.
If a breaker trips, this means that too much electricity is travelling through that circuit at one time. Modern kitchens, for example, use a lot more electricity than they used to. An older home may be running a microwave and a blender on the same circuit. If you try to run them at the same time, you might trip the breaker. If your breakers aren’t tripping when they should, they aren’t protecting your wires, which can lead to overheating and risk of fire.
Thirst Party Electric: PGE's Innovative Solution for Water Challenges
You may want to see also
Explore related products
They show the panel size in Amps
The numbers on your electricity panel indicate the size of the panel in Amps. This is the unit of measurement for the amount of power the panel can distribute to your home's electrical circuits and wall outlets.
The main breaker or fuse, usually the largest switch inside the panel, will have the capacity written on it or next to it. This number indicates the panel's Amp value, which is typically 200 or larger in newer homes, while older homes may have 60 or 100 Amp panels.
The breakers inside the panel will also have numbers on them, indicating the maximum amount of power in Amps they can allow through the circuit before tripping. For example, a breaker labelled with '15' will allow 15 Amps through but will shut off the circuit if it senses 16 Amps. This is a safety measure to protect the wiring in your walls, as larger wires can handle more power than smaller ones.
It is important to understand how to read your circuit breaker panel, especially in emergencies when you may need to quickly shut off the power to the building or restore power to a tripped circuit. The main breaker at the top allows you to turn off all circuits simultaneously, while branch circuit breakers control individual circuits.
If you are unable to locate the panel size or its electrical service capacity, you can ask an electrician to assist you.
Understanding Primary Electrical Systems: What Does PRI Mean?
You may want to see also
Explore related products
They help identify the circuit breaker switches
The numbers on your electricity panel are there to indicate how much power (in amps) is being let through the circuit before it trips. For example, a breaker labelled with a '15' will allow 15 amps through but will shut off the circuit if it senses 16 amps. This is a safety measure to protect the wiring in your walls.
These numbers help identify the circuit breaker switches. The circuit breaker panel is the hub for electricity distribution from the utility company to the electrical circuits within your home. It is typically a metallic box mounted on a wall in utility rooms, basements, or garages. It usually features a hinged door that protects the circuit breakers inside. The circuit breaker can automatically stop the current flow in an electrical circuit when there is too much current or a short circuit. This is a crucial safety device that prevents electrical fires and safeguards electrical equipment.
When accessing the panel box, you will encounter a dead front cover or a flat panel with breaker openings. Typically, the panel consists of two vertical rows of breakers, with the main breaker occupying the top position. The main breaker grants you the ability to shut off all circuits simultaneously. On the other hand, branch circuit breakers are designed to deactivate individual circuits.
The numbers on the panel can be used to identify the switches they correspond to. These numbers are usually labelled on a diagram or written on tags placed near the switches. These tags specify the areas of the home or appliances that they correspond to. For example, if the breaker that supplies electricity to the stove or oven trips, you can consult the label to identify the circuit breaker responsible for the oven.
If the switches are not labelled, you will need to test each circuit and label the switches yourself.
Troubleshooting Your Electric Fireplace: Code E3 Explained
You may want to see also
Explore related products
They show the maximum electrical load the panel can handle
The electrical panel, also known as the breaker box, load centre, fuse box, distribution centre, or distribution box, is an important component of your home's electrical system. It serves as the hub for electricity distribution, supplying power to various circuits and wall outlets throughout your home.
The numbers on your electrical panel are crucial indicators of the maximum electrical load the panel can handle before it trips. These numbers, typically found on the breakers, represent the amount of power in amps that can pass through a circuit before the breaker shuts off. For example, a breaker labelled with "15" will allow 15 amps of current but will cut off the circuit if it senses 16 amps or more. This safety mechanism protects the wiring in your walls from overheating and potential fire hazards.
The main breaker, usually the largest breaker in the panel, plays a pivotal role in controlling the power supply to the entire electrical system. It acts as a safety device, safeguarding against overloads and short circuits. During maintenance or emergencies, turning off the main breaker will disconnect power to the entire electrical system.
It is important to note that the electrical panel is rated to distribute a fixed amount of power, typically measured in amps. Older homes may have smaller amp values, such as 60 or 100, while newer homes often feature panels of 200 amps or higher. Common panel amp values include 60, 100, 125, 150, 200, and 220, while larger or newer homes may have panels with 300 or 400 amps.
Understanding the electrical load capacity of your panel is essential for safe and efficient power usage in your home. It helps you manage your electrical appliances and ensures you don't overload your circuits. In case of emergencies or issues with your electrical system, you can refer to the labels and numbers on the electrical panel to quickly identify and address any problems.
Understanding 'In Phase' Electrical Concepts: Meaning and Applications
You may want to see also
Explore related products
They indicate the number of circuits in your house
The numbers on your electricity panel indicate the number of circuits in your house. Each number corresponds to a specific circuit, and these circuits are powered by the same main conductors feeding the panel. These are the big wires that power the entire panel. The numbers also indicate the amount of power that can go through a circuit before it trips. For example, a breaker labelled with a 15 will allow 15 amps through but will shut the circuit off if it senses 16 amps. This is a safety measure to protect the wiring in your walls.
Your home's electrical panel is also known as the breaker box, load centre, fuse box, distribution centre, or distribution box. It distributes a fixed amount of power, measured in amps, to individual circuits and wall outlets in your home. The electrical panel may be located in a utility room, garage, laundry room, basement, or hall closet. It may also be located outside.
You can determine the number of circuits in your home by locating your main electrical panel and identifying the number of switches. Each switch sends power to a specific circuit in your house. You can then return to the breaker panel and label the switch with the room or rooms on the circuit. Repeat this process for each switch until they are all labelled.
If you are unsure about the number of circuits in your home, you can ask an electrician to help you identify them.
Interlocking Electrical Systems: Safety Through Connection
You may want to see also
Frequently asked questions
The numbers on your electricity panel, also known as a breaker box, indicate the amount of power in Amps that can pass through a circuit before it trips. For example, a breaker labelled with '15' will allow 15 Amps through but will shut off the circuit if it senses 16 Amps.
If your breaker trips, this means that too much electricity is travelling through that circuit. To reset the breaker, open the breaker panel and locate the circuit that isn't lined up with the rest. Switch the breaker to the 'off' position, wait a moment, and then switch it back to the 'on' position.
Your electrical panel's size in Amps should be written on or next to the main breaker or fuse, which is usually the largest switch inside the panel. It may be labelled 'Main' or 'Service Disconnect'. Alternatively, you may find a label indicating the panel's amperage affixed by the manufacturer or an inspector.
