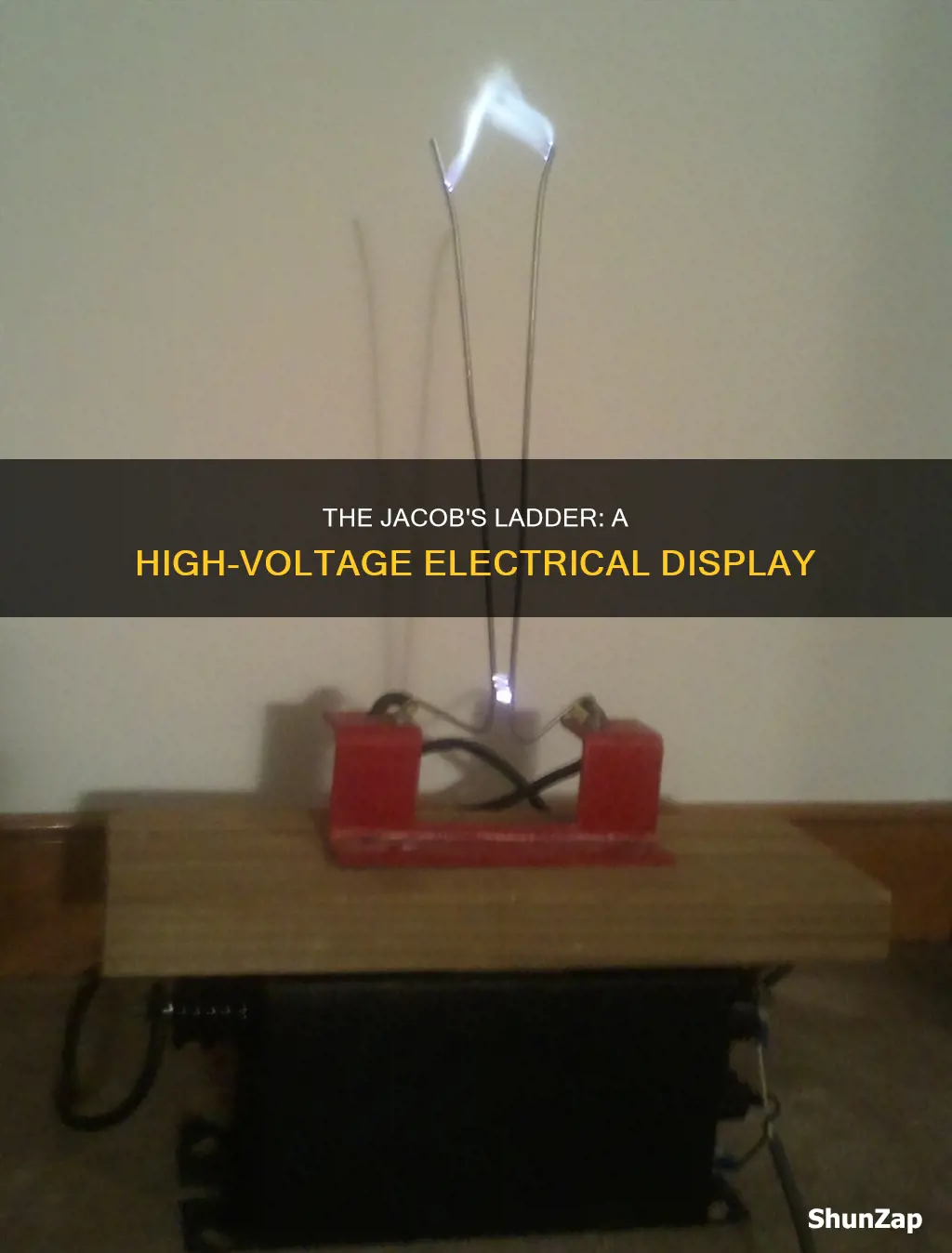

Jacob's Ladder is a high-voltage climbing arc that demonstrates electrical principles. It consists of two vertical conducting bars, wider at the top, connected to a high-voltage power supply. When the power is turned on, electrons are fed into one of the wires, causing them to jump across to the other wire, creating a bright spark that climbs up the ladder as it heats the air around it. This phenomenon is often used for educational demonstrations and can even be employed for special effects in entertainment settings.
| Characteristics | Values |
|---|---|
| Nature | An electric spark that jumps between two parallel wires |
| Climbing | The spark climbs up the ladder as it heats the air around it |
| Electron behaviour | Electrons jump across to the other wire, which is connected to the ground |
| Heat | The spark is hot enough to be classified as plasma |
| Voltage | High voltage |
| Impedance | As the arc rises, the impedance increases, causing the voltage between the bars to increase |
| Safety | Should only be operated by professionals in a demo room |
Explore related products
![Jacob's Ladder [Blu-ray + Digital HD]](https://m.media-amazon.com/images/I/81e5UIpQxWL._AC_UY218_.jpg)
What You'll Learn
High voltage climbing arc
A Jacob's Ladder is a device that creates a high-voltage climbing arc. When switched on, electrons are fed into one of the wires, causing them to repel and jump across to the other wire, which is connected to the ground. This electron jump creates a bright spark in the air, which then climbs up the ladder as it heats the surrounding air, which rises, carrying the spark with it. The spark is hot enough to be classified as a plasma.
The transformer at the bottom of the device creates a potential difference between the wires, which is what causes the electrons to jump. As the spark reaches the top of the wires, it dies, and a new spark is created at the bottom. This process is continuous, creating the visual effect of a climbing arc.
The Jacob's Ladder device is relatively simple and can be constructed using various transformers, such as those from microwave ovens or utility poles. However, it is important to note that high voltages can be extremely dangerous, and certain transformers, like those from microwave ovens, can be lethal if not handled correctly.
The climbing arc produced by the Jacob's Ladder is a result of the ionized air in the arc having lower resistance than the surrounding air. This heated plasma rises, creating a path for the current to follow. Eventually, the gap becomes too wide, the arc extinguishes, and a new arc is created at the bottom, starting the process anew.
The Jacob's Ladder phenomenon has been observed in popular culture, such as in old movies, where it creates a visually striking and resonant effect.
Understanding 3-Phase Electrical Supply Systems: A Primer
You may want to see also
Explore related products
![Jacob's Ladder [DVD]](https://m.media-amazon.com/images/I/91RarRqShdL._AC_UY218_.jpg)
How electrons behave
An electrical Jacob's Ladder is a high-voltage climbing arc demonstration that illustrates electron behaviour. It consists of two vertical conducting bars, connected to a high-voltage power supply, with a transformer at the base that creates a potential difference between the wires. When the power is turned on, electrons are fed into one of the wires.
Electrons are negatively charged particles that carry electric current through conductors. In the Jacob's Ladder experiment, these electrons exhibit several key behaviours:
Repulsion and Jumping
Electrons are subject to electrostatic forces, and like charges repel. In this case, the electrons in one wire experience a repulsive force, causing them to want to move away from each other. As a result, they jump across to the other wire, which is connected to the ground. This jumping behaviour is a fundamental aspect of electron dynamics in the presence of electric fields.
Spark Formation and Climbing
When the electrons jump between the wires, they create a spark in the air. This spark is essentially a small-scale lightning bolt—a bright, hot plasma. Due to the heat generated, the air around the spark expands and becomes less dense, causing it to rise. As the spark climbs, it continues to heat the air above it, perpetuating its upward movement. This phenomenon demonstrates the relationship between heat, air movement, and electron behaviour.
Arc Formation and Cycling
The spark eventually reaches the top of the "ladder" and vanishes, causing an arc to form. As the arc rises, the impedance increases, leading to an increase in voltage between the bars. When the arc disappears, the voltage returns to its initial state, sparking a new arc and repeating the cycle. This cyclic behaviour showcases the dynamic interplay between voltage, current, and electron flow.
The Jacob's Ladder demonstration provides a visual representation of electron behaviour in high-voltage systems, offering valuable insights into the complex dynamics of electricity and plasma formation.
Disabling Electrical Boxes: Delays and Solutions
You may want to see also
Explore related products
![Jacob's Ladder (Limited Edition, SteelBook) [4K UHD + Blu-ray] [Region Free]](https://m.media-amazon.com/images/I/813aRbp0TsL._AC_UY218_.jpg)
The role of impedance
The electrical Jacob's ladder is a device used to produce a continuous, high-voltage, high-frequency arc of electricity. It is named after its resemblance to the ladder in the biblical story of Jacob's dream. The device consists of two parallel wires with a high voltage applied across them, creating an electric arc that climbs up the wires, giving the appearance of a climbing ladder of energy. These devices are often used in educational demonstrations to showcase the principles of electricity and high-voltage phenomena. Understanding the role of impedance is crucial to comprehending the operation of an electrical Jacob's ladder. Impedance refers to the opposition that a circuit presents to the flow of alternating current (AC). It is a complex quantity, consisting of both resistance and reactance. In the context of a Jacob's ladder, impedance plays a pivotal role in determining how the electric current behaves as it travels through the wires.
The wires themselves have inherent resistance, which is a component of impedance. This resistance leads to a voltage drop along the length of the wires, meaning that the voltage at any point on the wire is lower than the initial voltage applied. As a result, the electric arc doesn't travel uniformly along the wires but tends to climb upwards. The climbing arc forms a plasma discharge, which has its unique electrical characteristics. The plasma introduces additional capacitance and inductance into the circuit, further influencing the behavior of the current. The changing voltage and the presence of capacitance and inductance lead to the generation of reactance, which is the second component of impedance. Reactance causes the current to lag behind the voltage in an AC circuit, and this phase difference is essential for the functioning of the Jacob's ladder.
The arc's climbing behavior is a direct consequence of the changing impedance along the wires. As the arc moves upwards, it encounters sections of the wire with different impedances due to variations in wire thickness, temperature, and other factors. These changes in impedance cause the arc to seek the path of least resistance, propelling it upwards in a ladder-like motion. The rate at which the arc climbs is influenced by the frequency of the AC voltage. Higher frequencies tend to produce faster-climbing arcs, while lower frequencies result in slower movement. The voltage applied to the Jacob's ladder also plays a significant role. Higher voltages can overcome the impedance more easily, leading to a more vigorous and rapid arc formation and ascent.
Additionally, the physical dimensions of the wires and their separation distance are factors that influence impedance. The longer and closer together the wires are, the lower the impedance of the circuit. This design consideration is crucial for achieving the desired arc behavior. In summary, the role of impedance in an electrical Jacob's ladder is fundamental to its characteristic behavior. It influences the climbing motion of the arc, the rate at which it climbs, and the overall performance of the device. Understanding impedance helps explain why the arc climbs upwards, seeking the path of least resistance, and how adjustments to voltage, frequency, and wire configuration can be used to control the arc's behavior. This knowledge is not only essential for the safe operation of Jacob's ladders but also for understanding the underlying principles of AC circuits and high-voltage phenomena.
Electrical Therapy: TENS for Pain Relief
You may want to see also
Explore related products
Demonstration setup
The Jacob's Ladder demonstration setup involves creating a high-voltage climbing arc between two vertical conducting bars. Here is a step-by-step guide on how to set up the demonstration:
Firstly, ensure the demonstration is conducted in a clear area, free from any flammable or combustible materials. This is crucial for safety reasons. The apparatus consists of two vertical conducting bars, positioned close together at the bottom and farther apart at the top. These conducting bars serve as the "ladder" for the electric arc to climb.
Next, connect the power cord of the Jacob's Ladder to a foot switch, and then plug the foot switch into a grounded electrical outlet. If you are using a surge protector, use its switch to power on the device. Always use the foot switch to control the power supply to the apparatus.
Once the power is connected, you can turn on the device. The transformer at the base of the apparatus plays a crucial role in generating a high voltage, typically around 15,000 volts. This high voltage creates a potential difference between the wires, causing electrons to repel each other and jump across the wires, resulting in a bright spark.
As the spark climbs up the ladder, it heats the surrounding air, causing the hot air to rise and carry the spark upwards. This spark is extremely hot and can even be classified as plasma due to its high temperature. When the spark reaches the top of the ladder and vanishes, the process repeats with a new arc forming at the bottom.
It is important to note that only professionals with proper personal protective equipment (PPE) should operate this demonstration due to the extremely high voltages involved. Electrical gloves and an insulating floor mat are essential safety precautions.
Safety First: Keeping Yourself Safe from Electricity
You may want to see also
Explore related products
Safety considerations
When operating an electrical Jacob's ladder, several safety considerations must be taken into account to ensure the protection of oneself and others. These devices produce high-voltage arcs of electricity that can be extremely dangerous if not handled properly. Here are some essential safety guidelines to follow:
Personal Protective Equipment (PPE): It is crucial to wear appropriate PPE when working with a Jacob's ladder. This includes insulated gloves, eye protection, and a face shield. The gloves protect against accidental contact with charged components, while eye protection and a face shield safeguard your eyes and face from arcs, sparks, and potential debris.
Insulation and Isolation: Verify that the Jacob's ladder is properly insulated and isolated from conductive materials and surfaces. Ensure it is set up on a dry, non-conductive surface, and keep it away from water or moisture, which can lead to electrical hazards. Check the insulation of the device for any signs of damage or wear before use and replace if necessary.
Clear Work Area: Establish a designated work area that is free from bystanders or unauthorized individuals. Mark off the area to ensure people maintain a safe distance. Keep the work area well-lit and ensure that the floor is dry and free from any slippery substances to prevent accidents.
Electrical Safety: Inspect the Jacob's ladder for any signs of damage before use, and ensure that all connections are secure. Check for frayed wires, damaged insulation, or loose components. Use only the specified power source and ensure it is properly grounded. Never attempt to operate the device if there is any sign of damage or malfunction.
Arc Protection: The arcs produced by a Jacob's ladder can pose a significant hazard. Always direct the arcs away from flammable materials, combustible gases, or explosive substances. Maintain a safe distance from the arcs, and ensure that no body parts or clothing can come into contact with them. Use arc-resistant clothing if necessary.
Emergency Procedures: Have a fire extinguisher readily available in case of any mishaps. Familiarize yourself with the location and operation of emergency power cut-off switches. Establish an emergency response plan and ensure that all personnel are aware of their roles and responsibilities in the event of an accident or injury.
By adhering to these safety considerations, you can help minimize the risks associated with operating an electrical Jacob's ladder. It is important to always prioritize safety and maintain a vigilant attitude when working with high-voltage equipment. Stay informed about specific safety protocols and guidelines provided by the manufacturer of your device.
Understanding Electrical Harmonics: A Comprehensive Guide
You may want to see also
Frequently asked questions
Jacob's Ladder is a high-voltage climbing arc demonstration that shows an electric spark rising between two vertical conducting bars.
When the Jacob's Ladder is turned on, electrons are fed into one of the wires. These electrons want to get away from each other, so they jump across to the other wire, creating a spark that climbs up the ladder as it heats the air around it.
Jacob's Ladder uses extremely high voltage, so only professionals in a demo room should operate it. Proper PPE, including electrical gloves and an insulating floor mat, should be worn. The demonstration should also be placed away from any flammable or combustible materials.
The transformer at the bottom of Jacob's Ladder creates a potential difference between the wires, which causes the electrons to repel each other and jump from one wire to the other.
Once the arc reaches the top and vanishes, another arc is generated at the bottom, and the cycle repeats.
