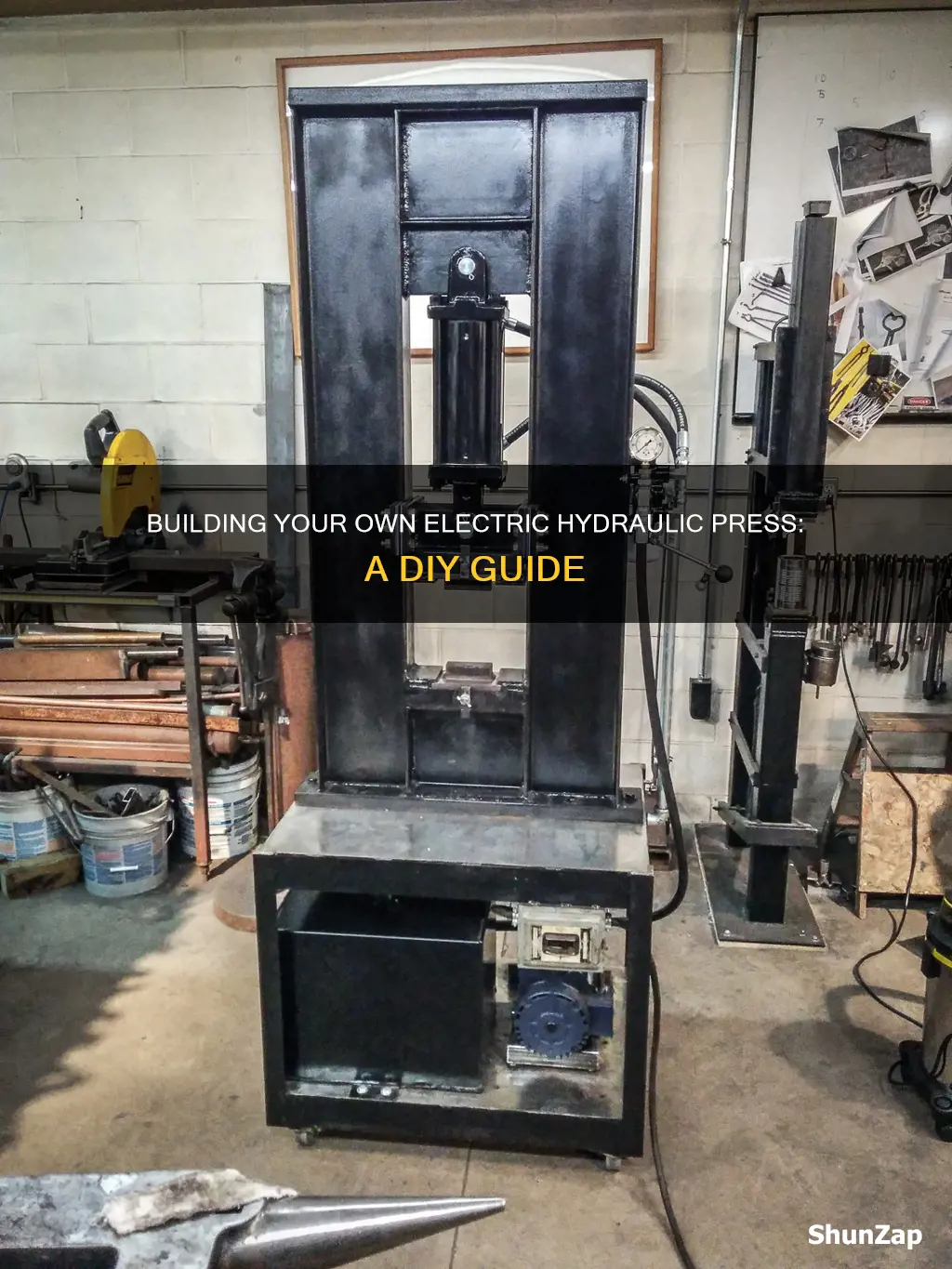

Building an electric hydraulic press is a challenging but rewarding project. Whether for a school science project or to straighten a bike axle, a homemade hydraulic press can be a powerful tool. Safety is a key consideration, and protective gear such as eye protection and gloves is essential. The scale of the project can vary from a small press that can crush a lightbulb to a large 100-ton press. The key components include a sturdy frame, a hydraulic jack, and a pump mechanism. The construction process involves cutting, welding, drilling, and grinding, and the press can be made from materials such as plywood, steel, and syringes. With the right tools, knowledge, and precautions, building an electric hydraulic press can be a fun and satisfying endeavour.
| Characteristics | Values |
|---|---|
| Required Materials | Plywood, syringes, epoxy, water, heavy-duty steel, bolts, a hydraulic jack, wire brush, work gloves, eye protection, safety goggles |
| Tools | Drill, saw, pump, welding equipment, drill press |
| Safety | Ensure safety goggles and eye protection are worn. Consider adding a substantial cage around the press. |
| Testing | Fill the jar with water and start pumping. |
| Resetting | Detach tubes from the syringe and reset the syringe to their original positions. |
Explore related products
What You'll Learn
Gather materials: plywood, syringes, epoxy, etc
To build an electric hydraulic press, you will need to gather the following materials:
- Plywood: This will serve as the base and structural support for your press. Ensure you have enough plywood sheets to create a sturdy frame.
- Syringes: Large syringes are recommended as they provide a mechanical advantage. You will need multiple syringes, as they will be connected with tubing to form the hydraulic system.
- Epoxy: Epoxy is a strong adhesive that will be used to secure and seal various components of your press. It helps to have enough epoxy to cover all connections and potential leak points.
- Tubing: You will need flexible tubing to connect the syringes and create a sealed hydraulic system. Ensure the tubing can withstand high fluid pressure.
- One-way valves: These valves allow fluid to enter but not exit, ensuring the proper direction of fluid flow in your press.
- Sealant spray: Sealant spray will be applied to the cardboard or wood components to protect them from moisture and ensure a longer lifespan.
- Hot glue: Hot glue is useful for quickly bonding various parts of the press together. It can also help to fill small gaps or imperfections in your materials.
- Heavy-duty cardboard: Cardboard can be used as a frame material, providing a lightweight yet sturdy structure for your press. Ensure you have enough cardboard pieces to create the desired frame size.
- Power drill: A power drill will be essential for drilling holes in the plywood and other materials. It helps to have different drill bits suitable for the various materials you are using.
- Hacksaw or reciprocating saw: A saw is necessary for cutting slots and holes in the plywood and other components. It ensures a precise and clean cut.
- Sandpaper or emery board: Sandpaper is used to smooth out any rough edges created during cutting or drilling. It gives your press a finished look and feel.
- Screws: Screws will be needed to fasten and secure different parts of the press together, providing a strong and durable hold.
Once you have gathered these materials, you can begin constructing your electric hydraulic press by following a detailed guide on assembling the frame, hydraulic system, and control mechanisms.
Easy Steps to Detaching Your Oral B Electric Toothbrush
You may want to see also
Explore related products
Cut and drill holes in plywood
To cut and drill holes in plywood for your electric hydraulic press, you will need a few tools and materials. These include plywood, a drill, a saw, a jigsaw (optional), measuring tape, and safety gear such as eye protection and work gloves.
Start by measuring and marking the locations for your holes on the plywood. It is important to be precise during this step as the holes will guide the placement of other components. Once marked, use a drill to create pilot holes at each location. A pilot hole is a small hole that helps guide your larger drill bit and prevents splintering. Drill the pilot holes almost through the plywood, then flip the plywood over and finish drilling from the other side. This will ensure that the holes are clean and centred.
After drilling the holes, you may need to cut the plywood to size or shape it for your press. For straight cuts, use a table saw or a circular saw, ensuring that the finish side of the plywood is facing down to prevent splintering. If you need to cut curves or more complex shapes, a jigsaw is a good option. Clamp the plywood securely and follow your marked cutting lines slowly and carefully. If you need to cut out squares or rectangles, you can drill holes in the corners and then use the jigsaw to connect the holes, creating straight edges.
Remember to always wear safety gear when cutting and drilling. In addition to eye protection, consider respiratory protection, such as a dust mask, to avoid inhaling wood dust. Take your time and work carefully to ensure the best results.
Mastering the Electric Pallet Jack: A Step-by-Step Guide
You may want to see also
Explore related products
Assemble the structure
To assemble the structure of an electric hydraulic press, you will need the following materials:
- Plywood
- Syringes
- Dowels
- A pump
- A hydraulic jack
- Heavy-duty steel
- Large bolts
- A bottle jack
- Welding equipment
- Drilling equipment
- Cutting equipment
- Grinding equipment
First, cut and assemble the plywood to create a sturdy structure. Drill holes in the plywood for the syringes and dowels. Cut slots in the plywood with a hacksaw or reciprocating saw to hold the syringes in place.
Next, attach the pump to the structure. This can be done by mounting a syringe on a piece of plywood and drilling a hole into the syringe to mount a one-way valve. This will allow you to draw water from a jar when pulled and push water into the press when pushed.
Then, attach the tubes to the syringes and secure them in place. You may need to cover the water-dividing mechanism with epoxy to prevent leaks.
After that, assemble the hydraulic jack and bottle jack according to the manufacturer's instructions. These components will generate the pressure needed for the press.
Finally, use the welding, drilling, cutting, and grinding equipment to finish assembling the structure. This may include welding steel pieces together, drilling holes for bolts, and grinding down any rough edges. Remember to wear appropriate safety gear, including eye protection and work gloves, during the assembly process.
Conducting Electrical Continuity Tests: A Step-by-Step Guide
You may want to see also
Explore related products
Attach tubes and syringes
To attach the tubes and syringes for your electric hydraulic press, you will need some plywood, large syringes, tubes, and epoxy.
First, prepare two pieces of plywood by drilling holes in them. The number and size of the holes will depend on the number of syringes you plan to use. For example, if you are using five syringes, you will need to drill five holes in each piece of plywood. One piece of plywood will be used to hold the syringes, and the other will be placed at the top of the press.
Next, use a hacksaw or reciprocating saw to cut slots in the plywood piece that will hold the syringes. This will allow the syringes to be securely mounted in place. After cutting the slots, insert the syringes into the holes and secure them with epoxy. Make sure the syringes are firmly attached to the plywood before proceeding to the next step.
Now, attach the tubes to the syringes. You can use epoxy to secure the connection and prevent leaks. If you are using a water-based system, as mentioned in the source, it is important to cover the water-dividing mechanism in epoxy to prevent leaks. This step will ensure that the hydraulic system is sealed and can build up pressure.
Finally, mount a syringe on a separate piece of plywood to create the pump. Drill a hole into the syringe and attach a one-way valve. This will allow you to draw water from a jar when pulled and push water into the press when pushed. Connect the bottom end of the syringe to the one-way valve on the press.
Now you have successfully attached the tubes and syringes for your electric hydraulic press! Remember to always wear safety goggles when operating your press, especially when crushing objects, to protect yourself from any flying debris.
Transform Your Trikes: Electric Conversion Guide
You may want to see also
Explore related products
Test the hydraulic press
Once you've built your electric hydraulic press, you'll want to test it out to make sure it works as intended. Here's a step-by-step guide to testing your newly built hydraulic press:
Prepare the Work Area
Before you begin testing, ensure your work area is clear and free of any clutter or obstacles. As hydraulic presses involve high amounts of pressure, it is important to prioritise safety. Wear safety goggles to protect your eyes from any debris or fragments that may be projected during the testing process. Additionally, consider wearing work gloves to protect your hands and reduce the transmission of vibrations.
Initial Test
Now, it's time to conduct an initial test to ensure the hydraulic press is functional. If you've built your press following the instructions provided by Instructables, you'll have a jar filled with water. Start pumping to observe whether the hydraulic press is functioning as it should.
Reset the Press
After your initial test, you'll need to reset the press. To do this, simply detach the tubes from the syringe and return the syringes to their original positions.
Further Testing
With the basic functionality confirmed, you can now proceed to test the press with various materials. Remember to always wear your safety goggles when crushing objects. Try experimenting with different items, such as metal cans, glass light bulbs, or even thicker metals to observe the press's performance and understand its limitations.
Advanced Testing
If you're feeling adventurous and want to push the limits of your hydraulic press, you might attempt more complex tasks, such as straightening a bent bike axle or bending a 10mm rebar.
Remember, always prioritise safety and ensure you have sufficient knowledge of the hydraulic press's capabilities before attempting any tests.
Electric Toothbrush Guide: Brushing Gums the Right Way
You may want to see also
Frequently asked questions
You will need plywood, syringes, a pump, heavy-duty steel, a hydraulic jack, bolts, and a welder, drill, cutter, and grinder.
Wear safety goggles and gloves to protect yourself from leaks and shattering.
Cover the water-dividing mechanism in epoxy.
Fill a jar with water and start pumping.
You can use channel iron construction, C-channel steel, or four-poster-style heavy-duty steel with a cage around the press.
