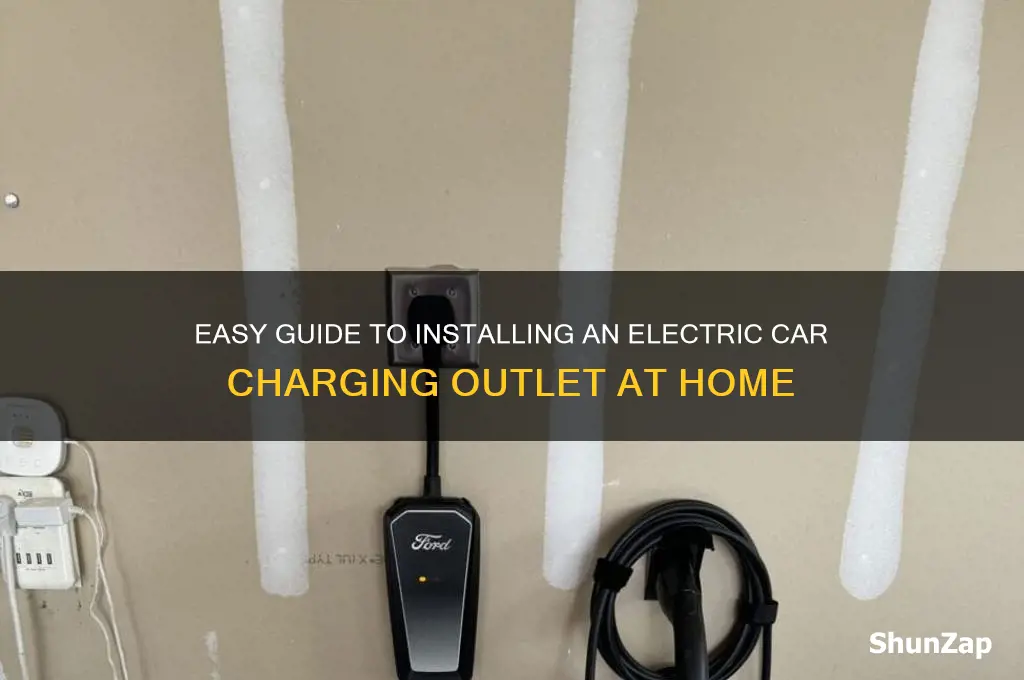

Installing an electrical outlet for an electric car, often referred to as an EV charging station, is a crucial step for any electric vehicle owner to ensure convenient and efficient home charging. The process involves selecting the appropriate charging level—Level 1 (120V) for basic needs or Level 2 (240V) for faster charging—and choosing a compatible charging station. Before installation, it’s essential to assess your home’s electrical capacity, potentially upgrading the electrical panel if necessary, and hiring a licensed electrician to ensure compliance with local codes and safety standards. Proper placement of the outlet, considering factors like proximity to the parking spot and weatherproofing, is also key to a successful installation.
Explore related products
![200W Car Power Inverter, PiSFAU DC 12V to 110V AC Car Plug Adapter Outlet with [20W USB-C] /USB-Fast Charger(18W) / 4.8A Dual USB/car Charger for Laptop](https://m.media-amazon.com/images/I/61IRXv7G09L._AC_UL320_.jpg)
What You'll Learn
- Choose the Right Charger: Select Level 2 EVSE for faster home charging, compatible with your car model
- Plan Installation Location: Place outlet near parking, ensure easy access, and comply with local codes
- Hire a Certified Electrician: Professional installation ensures safety, proper wiring, and meets electrical standards
- Upgrade Electrical Panel: Verify panel capacity; add dedicated circuit if needed for EV charging
- Install and Test Outlet: Mount charger securely, test functionality, and confirm compliance with safety guidelines
Choose the Right Charger: Select Level 2 EVSE for faster home charging, compatible with your car model
Upgrading to a Level 2 EVSE charger for your electric vehicle (EV) can significantly reduce charging times compared to a standard Level 1 setup. While Level 1 chargers use a 120-volt outlet and provide about 2–5 miles of range per hour, Level 2 chargers operate on 240 volts, delivering 12–80 miles of range per hour, depending on the charger and vehicle. This makes Level 2 ideal for daily drivers who need a full charge overnight or want to top up quickly during the day.
Before purchasing a Level 2 charger, verify compatibility with your EV model. Most modern electric vehicles support Level 2 charging, but the connector type (e.g., J1772 or CCS) and maximum charging rate vary. Consult your car’s manual or manufacturer’s website to confirm the supported amperage—typically 32 amps for most EVs, though some high-end models can handle up to 48 amps. Choosing a charger that matches your car’s capabilities ensures optimal performance without overpaying for unnecessary features.
Installation of a Level 2 charger requires a dedicated 240-volt circuit, similar to what powers an electric dryer or stove. Hire a licensed electrician to assess your home’s electrical panel and ensure it can handle the additional load. If your panel is outdated or lacks capacity, upgrading it may be necessary. Costs for installation typically range from $500 to $1,500, depending on your home’s wiring and local labor rates. Some utilities and states offer rebates or incentives for EVSE installation, so check for available programs to offset expenses.
When selecting a Level 2 charger, consider features like Wi-Fi connectivity for monitoring usage, scheduling charging during off-peak hours, or integrating with smart home systems. Brands like ChargePoint, JuiceBox, and ClipperCreek offer popular models with varying price points and functionalities. Opt for a charger with a weatherproof design if installing it outdoors, and ensure it meets safety standards such as UL certification.
Finally, weigh the long-term benefits against the upfront cost. While Level 2 chargers are more expensive than Level 1, the convenience of faster charging often justifies the investment. For households with multiple EVs or those relying heavily on their vehicle, the time saved and flexibility gained make Level 2 charging a practical and future-proof choice. Pairing it with solar panels or time-of-use electricity rates can further enhance efficiency and reduce operating costs.
Electric Vehicle Credit: Is the Federal Incentive Active?
You may want to see also
Explore related products
Plan Installation Location: Place outlet near parking, ensure easy access, and comply with local codes
Choosing the right location for your electric vehicle (EV) charging outlet is a critical step that blends practicality with compliance. The ideal spot should be as close as possible to your parking area to minimize cable length and tripping hazards. Imagine pulling into your driveway after a long day—the last thing you want is to navigate a tangled mess of cords or stretch across your garage to reach the charger. Proximity not only simplifies daily use but also reduces wear and tear on the charging equipment. For instance, a wall adjacent to your parking spot or a garage corner within arm’s reach of where your EV’s charging port is located can be optimal.
Accessibility is another cornerstone of effective planning. Ensure the outlet is installed at a height that allows for easy connection without straining or bending excessively. A common recommendation is to place the outlet between 18 and 24 inches above the ground, aligning with the charging port of most EVs. Additionally, consider the path the cable will take from the outlet to the vehicle. Avoid areas prone to foot traffic or where the cable could become a nuisance, such as walkways or doorways. A well-thought-out layout not only enhances convenience but also prevents accidents.
Local codes and regulations play a non-negotiable role in this process. Before drilling any holes or mounting hardware, consult your municipality’s electrical and building codes. Some areas require permits for EV charger installations, while others dictate specific distances from combustible materials or mandate the use of weatherproof enclosures for outdoor outlets. For example, the National Electrical Code (NEC) in the U.S. provides guidelines on grounding, circuit protection, and placement. Ignoring these rules could result in fines, failed inspections, or even safety hazards. Always hire a licensed electrician who is familiar with local requirements to ensure compliance.
A comparative analysis of indoor versus outdoor installations highlights the importance of location planning. Indoor outlets, often placed in garages, offer protection from the elements and can be more cost-effective to install. However, they may limit flexibility if your parking situation changes. Outdoor outlets, on the other hand, provide greater versatility but require weatherproof enclosures and may involve higher installation costs due to trenching or conduit needs. For instance, a homeowner with a detached garage might find an outdoor outlet near the driveway more practical than running wiring through the house.
In conclusion, planning the installation location of your EV charging outlet demands a balance of convenience, safety, and adherence to regulations. Start by assessing your parking habits and measuring distances to determine the most practical spot. Prioritize accessibility by considering cable reach and user ergonomics. Finally, research local codes or consult professionals to avoid legal pitfalls. A well-planned location not only streamlines your charging routine but also ensures a safe and compliant setup for years to come.
Electric Cars and Solar Energy: Exploring the Connection and Potential
You may want to see also
Explore related products
![FOVAL 200W Car Power Inverter, DC 12V to 110V AC Car Laptop Charger Fast Charger Converter with [27W PD USB-C] & Dual USB Ports Multi-Protection Car Outlet Adapter Power Inverter for Vehicles](https://m.media-amazon.com/images/I/61rtWc-lWTL._AC_UL320_.jpg)
Hire a Certified Electrician: Professional installation ensures safety, proper wiring, and meets electrical standards
Electrical vehicle (EV) charging requires a dedicated circuit to handle the high amperage draw, typically 30 to 50 amps. Attempting a DIY installation without expertise risks overloaded circuits, fire hazards, and voided warranties. Certified electricians possess the training to assess your electrical panel capacity, select the correct wiring gauge (usually 8 or 10 AWG), and install a compatible NEMA 14-50 or 6-50 outlet. This ensures your EV charges safely and efficiently without compromising your home's electrical system.
Consider the potential consequences of improper installation. Overheated wires can melt insulation, leading to electrical fires. Incorrect grounding increases the risk of electric shock. A certified electrician will follow local building codes, obtain necessary permits, and conduct thorough inspections to guarantee compliance. This not only protects your home and family but also ensures your EV charging setup meets insurance requirements and manufacturer specifications.
While online tutorials may seem tempting, they often lack the nuance of real-world electrical systems. Factors like panel age, existing wiring condition, and local regulations demand professional judgment. Electricians use specialized tools like circuit testers and ampacity calculators to ensure your installation is future-proof. They can also advise on smart charging solutions, load management systems, and potential rebates or incentives for EV infrastructure upgrades.
Investing in professional installation is an investment in peace of mind. The upfront cost pales in comparison to the potential expenses of repairs, insurance claims, or even legal liability resulting from a DIY mishap. Certified electricians carry liability insurance, providing an additional layer of protection. By prioritizing safety and compliance, you ensure your EV charging setup is not just functional, but also reliable and long-lasting.
Selling Electrical Goods at Car Boot Sales: Legal Tips & Tricks
You may want to see also
Explore related products
![400W Power Inverter, FSATBTNE DC 12V to 110V AC Car Plug Adapter Outlet Converter with [65W PD USB-C] & [18W QC USB-A] Fast Charging Ports and 2 AC Outlets Car Power Inverters for Vehicles](https://m.media-amazon.com/images/I/71obrX4Rn8L._AC_UL320_.jpg)
![300W Car Power Inverter 12V to 110V，PiSFAU DC to AC Car Plug in Adapter Outlet with Multi USB[24W USB-C] /USB-Fast Charger(24W) Car Inverter，Car Charger for Laptop Vehicles Road Trip Essentials](https://m.media-amazon.com/images/I/61gjbuKzufL._AC_UL320_.jpg)
Upgrade Electrical Panel: Verify panel capacity; add dedicated circuit if needed for EV charging
Before installing an electrical outlet for your electric vehicle (EV), it's crucial to assess your home's electrical panel. Most EV chargers require a dedicated 40-amp or 50-amp circuit, which may exceed the capacity of older panels. Start by locating your main panel and checking its amperage rating, typically 100, 150, or 200 amps. If your panel is already near capacity, adding a high-amperage circuit for EV charging could overload the system, leading to tripped breakers or, worse, electrical hazards.
To verify panel capacity, calculate your current electrical load. Sum the wattage of all existing circuits and divide by the panel's voltage (usually 240 volts) to determine the total amperage in use. Compare this to your panel's maximum capacity. For example, a 200-amp panel with 160 amps in use leaves 40 amps available—sufficient for a Level 2 EV charger. If your panel is maxed out, consult an electrician to upgrade it or redistribute existing loads.
Adding a dedicated circuit for EV charging is non-negotiable. Sharing a circuit with other appliances risks overloading the breaker, slowing charge times, or damaging devices. A dedicated circuit ensures consistent power delivery and complies with electrical codes. The process involves installing a new double-pole breaker in the panel, running appropriate gauge wiring (typically 8-gauge for 40-amp circuits), and connecting it to the EV charging outlet. This task requires expertise; hiring a licensed electrician is highly recommended to ensure safety and compliance.
Upgrading your panel or adding a circuit isn’t just about capacity—it’s about future-proofing your home. As EV adoption grows, households may add second vehicles or higher-power chargers. Investing in a panel upgrade now, such as increasing from 100 to 200 amps, provides headroom for additional circuits and avoids costly retrofits later. Additionally, some utilities offer incentives for panel upgrades tied to EV charging installations, making it a financially savvy move.
Finally, consider smart panel solutions or subpanels if your main panel lacks space or capacity. A subpanel can offload new circuits, including EV charging, freeing up the main panel for existing loads. Smart panels offer real-time energy monitoring, helping you manage consumption and optimize charging times. While these options add upfront costs, they enhance efficiency, safety, and scalability—critical for modern EV-ready homes.
Electric Vehicles: Understanding Federal Tax Credits
You may want to see also
Explore related products
Install and Test Outlet: Mount charger securely, test functionality, and confirm compliance with safety guidelines
Securing your electric vehicle (EV) charger is the linchpin of a safe and functional installation. Begin by selecting a mounting location that’s both accessible and structurally sound—ideally near your parking spot but away from high-traffic areas. Use stainless steel or weather-resistant brackets to anchor the charger to a wall or pedestal, ensuring it can withstand the weight of the unit and the pull of the charging cable. Follow the manufacturer’s guidelines for drilling holes and using appropriate fasteners, such as masonry anchors for concrete walls or wood screws for stud-mounted installations. Double-check that the charger is level and firmly attached before proceeding.
Once mounted, testing the outlet’s functionality is critical to ensure your EV charges reliably. Start by verifying the circuit is live using a non-contact voltage tester. Plug in a portable circuit analyzer to check for proper grounding, correct polarity, and voltage levels (typically 240V for Level 2 chargers). Look for indicators like "OPEN GROUND" or "REVERSE POLARITY" on the analyzer, which signal potential hazards. If the outlet passes these tests, connect your EV charger and initiate a charging session. Monitor the process for any abnormalities, such as overheating or unusual noises, and confirm the vehicle’s dashboard indicates charging has begun.
Compliance with safety guidelines isn’t just a formality—it’s a safeguard against electrical hazards and potential damage. Ensure your installation adheres to local electrical codes and standards, such as the National Electrical Code (NEC) in the U.S., which mandates dedicated circuits for EV chargers. Use only UL-listed or ETL-certified components, including the outlet, wiring, and charger itself. Install a ground fault circuit interrupter (GFCI) or arc-fault circuit interrupter (AFCI) if required by code, and label the circuit breaker in your electrical panel to prevent accidental shutdowns. Regularly inspect the setup for wear, corrosion, or loose connections, especially in outdoor installations.
A practical tip for long-term reliability is to install a weatherproof enclosure if your charger is exposed to the elements. This protects the outlet and wiring from moisture, debris, and temperature extremes, extending the lifespan of your setup. Additionally, consider adding a surge protector to safeguard against power spikes that could damage your EV’s battery or onboard charger. By combining secure mounting, thorough testing, and strict adherence to safety standards, you’ll create a robust charging station that’s both efficient and hazard-free.
Raspberry Pi Car Projects: Electrical Engineering Explained for Beginners
You may want to see also
Frequently asked questions
Most electric vehicles (EVs) use a Level 2 charger, which requires a 240-volt outlet. This is similar to the outlet used for an electric dryer or stove.
While it’s technically possible to install an outlet yourself, it’s highly recommended to hire a licensed electrician. Electrical work involves safety risks and must comply with local codes.
A dedicated 40-50 amp circuit with 8-gauge or 6-gauge wiring is typically required for Level 2 charging. The exact specifications depend on your EV and charging station.
Yes, most areas require a permit for electrical upgrades. Check with your local building department to ensure compliance with regulations.
Costs vary depending on your home’s electrical setup, but typically range from $500 to $2,000. This includes materials, labor, and any necessary upgrades to your electrical panel.
