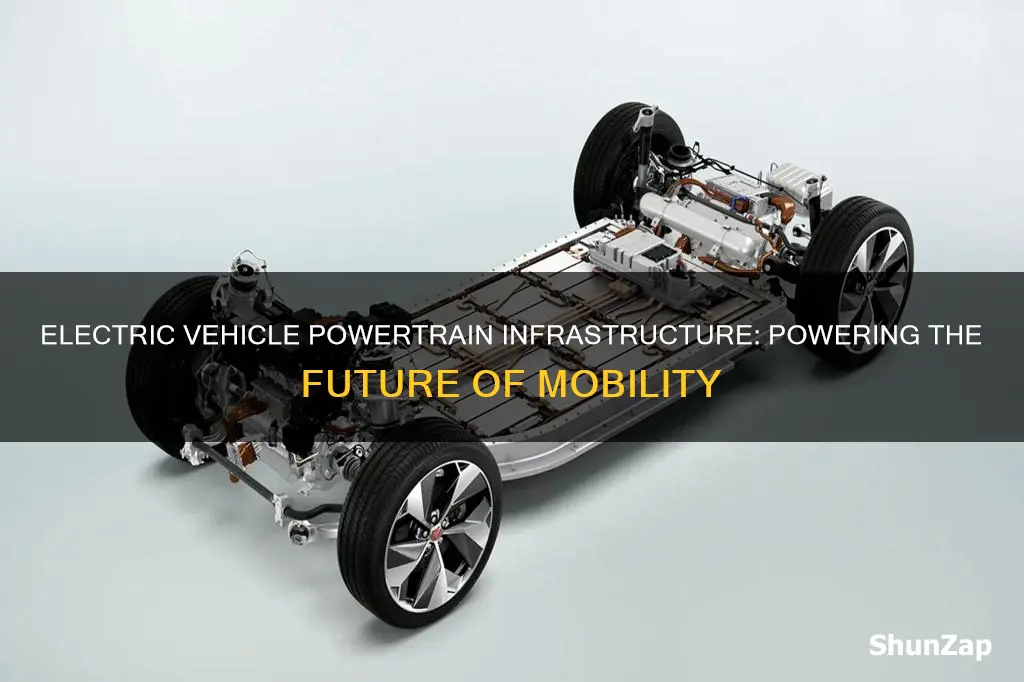

The powertrain of an electric vehicle (EV) refers to the system that converts electrical energy into mechanical motion, thrusting the vehicle forward. It is a set of components that work together to generate and control the power required to move the vehicle. The EV powertrain consists of a battery pack, a motor-drive controller, a traction motor, and power electronics. The battery pack stores the energy needed to run the vehicle, while the motor-drive controller and power electronics manage the flow of electrical energy, controlling the speed and acceleration based on the driver's inputs. The traction motor converts electrical energy into mechanical energy, which is then delivered to the wheels through the transmission and driveshaft. This system is much simpler than that of internal combustion engine (ICE) vehicles, with 60% fewer components, resulting in lower maintenance costs and zero tailpipe emissions.
| Characteristics | Values |
|---|---|
| Definition | A set of components that generate power and deliver it to the wheels, enabling the vehicle to move |
| Components | Battery pack, motor-drive controller, traction motor, Transmission, driveshaft, axles, electronic control units (ECUs), onboard charger (OBC), thermal management system, etc. |
| Function | Converts electrical energy into mechanical motion |
| Advantages | Zero emissions, reduced noise pollution, simpler system with fewer components, lower maintenance costs, regenerative braking |
| Disadvantages | Dependence on charging infrastructure |
| Future Improvements | More efficient energy generation and management, solid-state batteries, advanced power electronics and energy management systems, improved component design and operational efficiency |
Explore related products
![Raylix 16A Level 1&2 EV Charger, 110V-240V Electric Car Charger with 21ft Cable [Adjustable Current & Delay Charging] Portable EV Chargers for All SAE J1772, Nema 6-20 & Nema 5-15 Plug, Accessories](https://m.media-amazon.com/images/I/71jtqSY-S4L._AC_UL320_.jpg)
What You'll Learn
Electric vehicle powertrain core parts
An electric vehicle (EV) powertrain is a system that converts electrical energy into mechanical motion to drive the vehicle. It is made up of three main sections: the energy source, power conversion, and the drive system. The EV powertrain has about 60% fewer components than the powertrain of an internal combustion engine (ICE) vehicle. This is because the ICE powertrain includes an engine, transmission, and driveshaft among its hundreds of moving parts. In contrast, the EV powertrain is much more compact and efficient, with fewer moving parts, resulting in lower maintenance costs and less wear over time.
The core parts of an EV powertrain include:
- Battery Pack: The battery pack is made up of multiple Lithium-ion cells and stores the energy needed to run the vehicle. It provides direct current (DC) output.
- DC-AC Converter: The DC-AC converter, also known as the traction inverter, converts the DC supplied by the battery pack to AC and supplies it to the electric motor. This power transfer is managed by a motor control mechanism, which controls the frequency and magnitude of the voltage supplied to the electric motor to manage the speed and acceleration according to the driver's instructions.
- Electric Motor: The electric motor is the centerpiece of the EV powertrain, converting electrical energy from the battery into mechanical energy to drive the wheels. It uses a stator, rotor, and other essential components to transform the energy and deliver it to the wheels via single-ratio transmission.
- Battery Management System (BMS): The BMS is a crucial component of the energy management system that continuously monitors the state of the battery. It ensures safe and efficient operation by taking necessary measures in case of a malfunction, performing cell balancing to deliver maximum efficiency, and regulating the charging and discharging processes.
- Thermal Management System: This system is responsible for maintaining the optimum operating temperature range for the powertrain components.
- Body Control Module (BCM): The BCM supervises and controls the functions of electronic accessories such as power windows, mirrors, security, and vehicle access control.
Electric Vehicle Revolution: Is Atlanta Ready?
You may want to see also
Explore related products
EV powertrain components
The powertrain of an electric vehicle (EV) is the system that converts electrical energy into mechanical motion, thrusting the vehicle forward. It is the set of components that generate the power required to move the vehicle and deliver it to the wheels.
The EV powertrain has 60% fewer components than the powertrain of an internal combustion engine (ICE) vehicle. The basic architecture of an EV powertrain consists of an energy source, a power conversion section, and a drive motor. The energy source includes the battery pack, which is made up of multiple lithium-ion cells that store and supply the energy needed to run the vehicle. The battery pack provides direct current (DC) output, which is then converted to alternating current (AC) by the DC-AC converter. This AC power is then supplied to the electric motor, which converts the electrical energy into mechanical energy that is delivered to the wheels via single-ratio transmission. The powertrain also includes a motor-drive controller with power electronics, which manages the power transfer from the battery pack to the electric motor, controlling the frequency and magnitude of the voltage supplied to control the speed and acceleration as per the driver's instructions.
In addition to these core parts, there are multiple hardware and software components in an EV powertrain. Electronic Control Units (ECUs) are software programs integrated with the powertrain components to help with data exchange and processing. The Battery Management System (BMS) is an example of a core ECU that monitors the state of the battery and takes necessary measures in the case of a malfunction. Other ECUs include the DC/DC converter, which converts the voltage from the battery pack to power auxiliary car components, and the thermal management system, which maintains the optimal operating temperature range for the powertrain components.
The EV powertrain architecture can improve vehicle performance by integrating and switching between multiple driving modes, such as vehicle acceleration or cruising, through the use of ECUs that augment the existing hardware. The main objective in designing an EV powertrain is efficiency, as higher efficiency leads to better thermal management and range.
Electric Vehicle Revolution: Guide to Investing in the Future
You may want to see also
Explore related products
EV powertrain advantages
An electric vehicle (EV) powertrain is a system in an electric vehicle that converts electrical energy into mechanical motion. The powertrain provides power to the vehicle. EV powertrains have several advantages over internal combustion engines (ICEs).
Firstly, EV powertrains produce zero tailpipe emissions, helping to reduce pollution and greenhouse gases, and providing a greener method of transportation. This is particularly significant as the world strives for a more sustainable future. In addition, the absence of an internal combustion engine means there is no ICE noise, resulting in reduced noise pollution.
Secondly, EV powertrains have a simpler design with fewer moving parts, which makes them more energy-efficient and reduces wear and maintenance costs. High-maintenance items such as spark plugs and oil changes are not required. The power from the battery is delivered directly to the motor(s) attached to the axle(s), resulting in superior performance compared to hybrid vehicles.
Finally, the decision to choose an EV powertrain will depend on individual driving habits and preferences, as well as the proximity to a charging station infrastructure. For example, if charging infrastructure is a major concern, a Hybrid Electric Vehicle (HEV) or Plug-in Hybrid Electric Vehicle (PHEV) may be a better option. However, if driving within the city and wanting a quiet, environmentally friendly, low-maintenance, and cost-effective vehicle, a Battery Electric Vehicle (BEV) is a good choice.
Ford's Electric Vehicle Strategy: A Costly Gamble?
You may want to see also
Explore related products
EV powertrain design
The main objective in designing an EV powertrain is efficiency, as higher efficiency leads to better thermal management and range. Lower efficiency results in higher power loss, causing extra heating, for which the size of the EV must be increased for heat dissipation. Another critical parameter for optimising EV powertrains is power density (the power delivered per vehicle unit volume).
The architecture of a BEV consists of three sections: the energy source, power conversion, and the drive system or the electro-mechanical actuator. The energy source includes the battery pack, battery management system, onboard charger (OBC), and thermal management system. The battery pack is made up of multiple Lithium-ion cells and stores the energy needed to run the vehicle. The OBC controls the AC received through the charging port and converts it to DC for battery storage. The power conversion section consists of the main traction drive inverter and bidirectional dc/dc converter, and the electro-mechanical actuator includes the traction motor and mechanical transmission. The traction motor produces the mechanical energy for propulsion based on the dynamics of the electric power received from the transmission. The final reduction drive transforms the input from the motor to a high-torque output to the wheels to accelerate the vehicle.
To optimise battery usage and improve mileage, EVs are designed to set the final drive ratio per vehicle specification and driving conditions. The ratio of the motor's input speed to the wheel's output speed is adjusted to meet target driving requirements, like short-range city drives or long-range highway drives. A higher final drive ratio leads to higher torque or better acceleration, whereas a lower torque ratio allows maximum vehicle speeds.
Electronic Control Units (ECUs) are software programs integrated with the powertrain components to help with data exchange and processing. The Battery Management System (BMS) is an example of a core ECU that monitors the state of the battery and performs cell balancing to deliver maximum efficiency.
EV powertrains have 60% fewer components than the powertrain of an internal combustion engine (ICE) vehicle, which requires an engine, fuel injection systems, and exhaust systems. As a result, EV powertrains have fewer moving parts, less wear, and generally lower upkeep costs.
The Open-Air Electric Vehicle Experience: Freedom and Innovation
You may want to see also
Explore related products
EV powertrain vs drivetrain
The powertrain and drivetrain are distinct systems with their own functions, but they work together to achieve optimal EV performance. The EV powertrain refers to the system that converts electrical energy into mechanical motion, comprising an integrated system of components that transform electrical energy into mechanical power. The EV drivetrain, on the other hand, transfers power from the electric motors to the wheels.
EV Powertrain
The EV powertrain consists of a battery pack, a motor-drive controller with power electronics, and a traction motor, among other components. The battery pack, made up of multiple Lithium-ion cells, stores the energy needed to run the vehicle and provides direct current (DC) output. The DC-AC converter then converts this DC to AC and supplies it to the electric motor, which converts electrical energy to mechanical energy delivered to the wheels. The powertrain electronic control unit (ECU) manages the power transfer by controlling the frequency and magnitude of the voltage supplied to the electric motor based on the driver's instructions.
Other core components of the EV powertrain include the battery management system (BMS), which monitors the battery's state, ensures maximum efficiency, and takes necessary measures in case of a malfunction. The thermal management system maintains the optimal operating temperature range for powertrain components, while the body control module (BCM) supervises and controls electronic accessories such as power windows, mirrors, and security.
EV Drivetrain
The EV drivetrain includes the driveshaft and its mechanical parts, such as the differential gearsets and EV axles. The differential gearsets rotate each wheel at varying speeds, dynamically adjusting torque distribution based on wheel load and road conditions. The EV axles bear the vehicle's weight and facilitate wheel rotation. The transmission, which interfaces with the drivetrain and powertrain, optimally distributes torque to the wheels.
Comparison
The EV powertrain and drivetrain work together, with the powertrain motor control and energy management impacting the drivetrain's efficiency in handling, agility, and responsiveness. Synchronization between the two systems is crucial for optimal EV performance. While the powertrain generates power, the drivetrain efficiently transfers that power to the wheels, ensuring the vehicle's handling and performance in diverse driving conditions.
Future advancements in EV powertrains and drivetrains are expected to bring more efficient energy generation and management, as well as improved component design and operational efficiency.
Increasing Electric Vehicle Adoption: Strategies for a Greener Future
You may want to see also
Frequently asked questions
A powertrain is a set of components that generate power and deliver it to the wheels, enabling the vehicle to move.
An EV powertrain is the system in an electric vehicle that converts electrical energy into mechanical motion. It comprises an integrated system of components that transform electrical energy into mechanical power.
The main components of an EV powertrain are the battery pack, electric motor, inverter, transmission, and driveshaft.
An ICE powertrain has an engine that converts fuel into mechanical energy through combustion. An EV powertrain replaces this engine with an electric motor and has around 60% fewer components.
An EV powertrain produces zero tailpipe emissions and no ICE noise. It also has fewer moving parts, resulting in lower maintenance costs.
